2,2 kW IE2
2,2 kW IE2

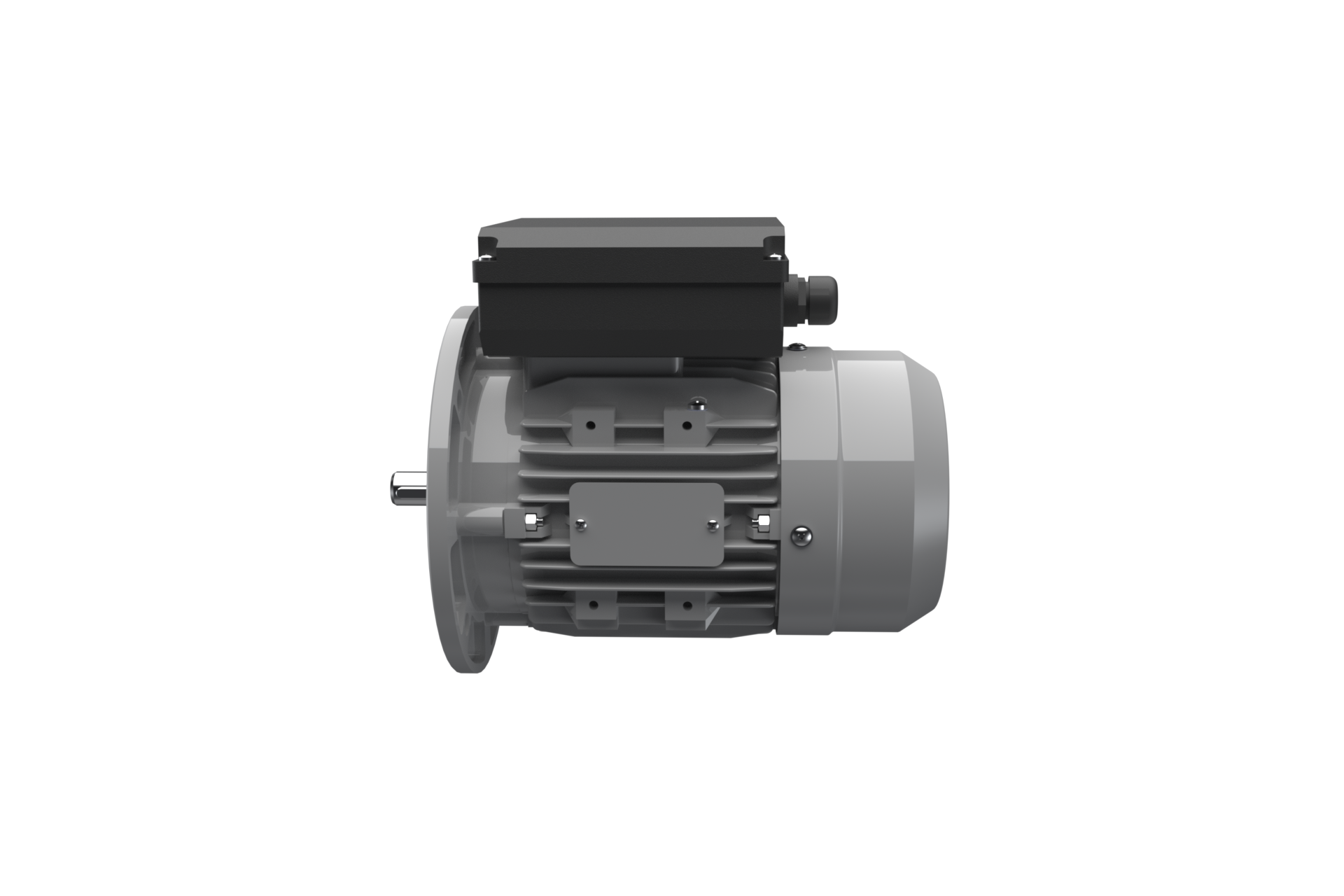

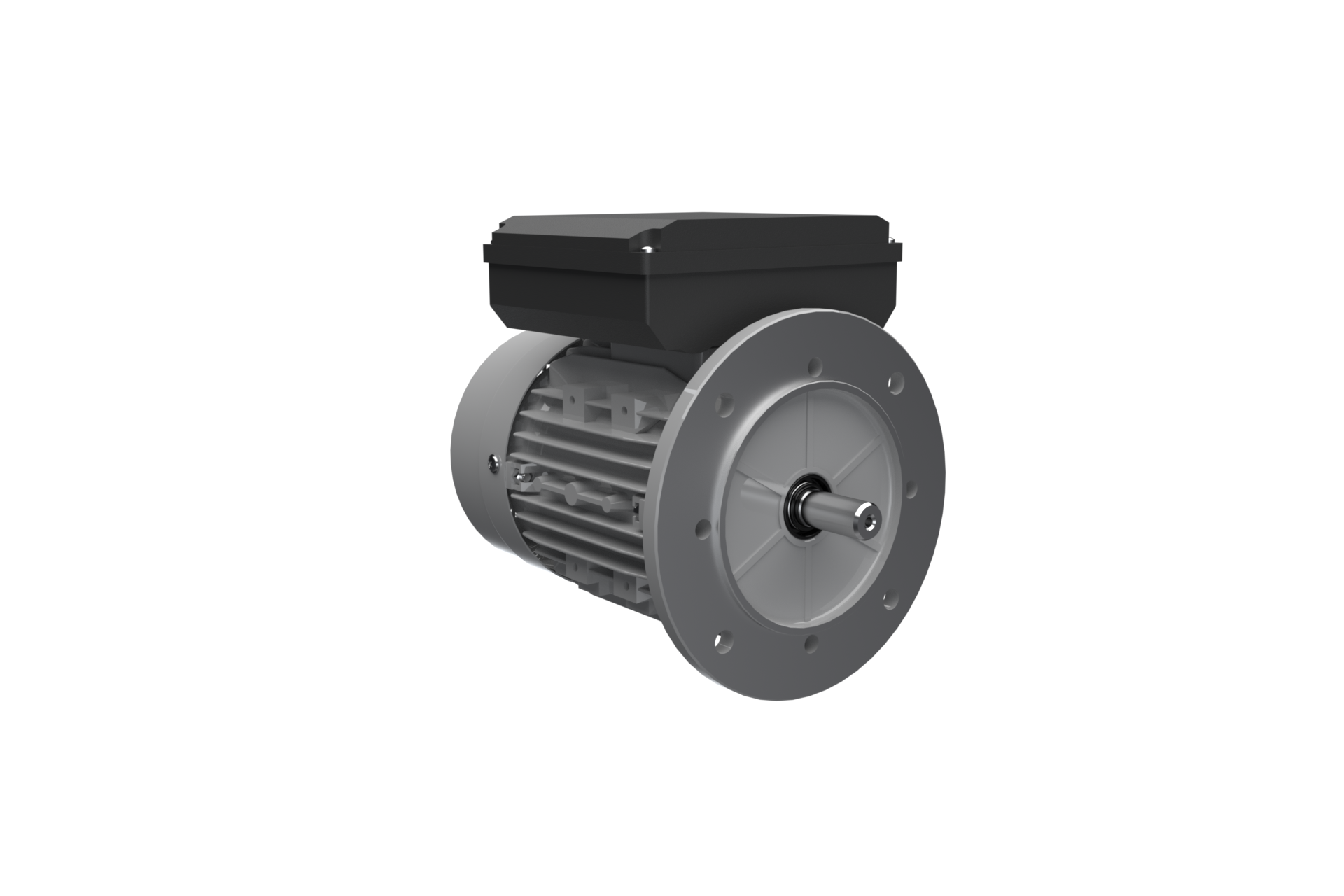

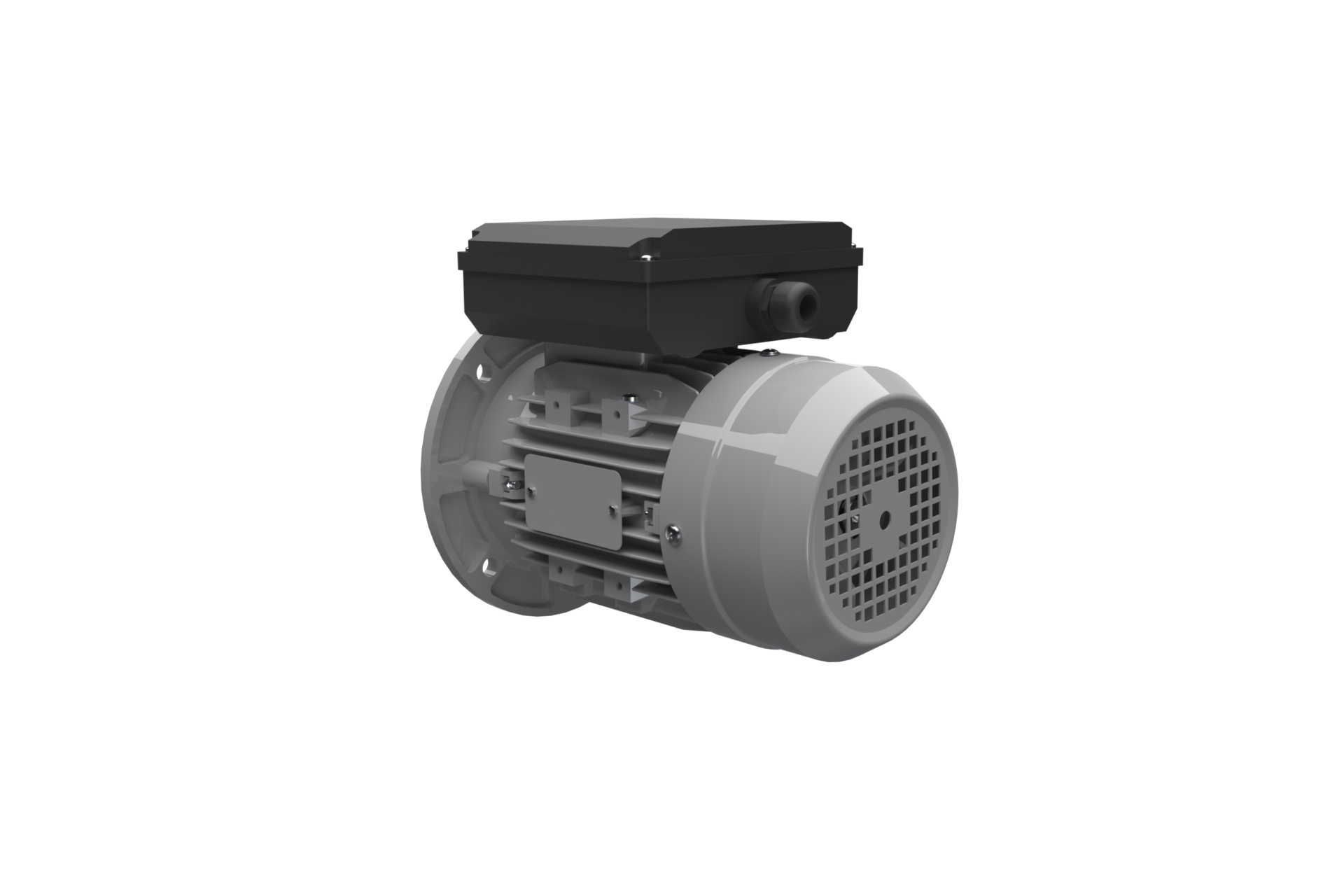

Asynchronous-Motor SP ACM 100 L 4/HE-H

Product number: ACMAAA2A041002G00000
Motor type Dual Capacitor
Efficiency class OP1 IE2
Speed OP1 (1/min) 1430
Mounting B5
Frame size 100
Power OP1 (kW) 2,2
Voltage OP1 230 V
Motor type Dual Capacitor
Speed OP1 (1/min) 1430
Insulation class F
Protection class (IP) IP55
Pole 4
Duty type OP1 S1

Description

Asynchronous-Motor SP ACM 100 L 4/HE-H
3D - Model
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise

General data

  • Color:
    RAL7030
  • Direction of rotation:
    right
  • Duty type OP1:
    S1
  • Housing type:
    L
  • Insulation class utilization:
    B
  • Motor design:
    Standard
  • Motor type:
    Dual Capacitor
  • Protection class (IP):
    IP55
  • Terminal box orientation:
    Cable glands to non drive-end
  • Technology:
    AC Asynchronous-Motor
  • Frame size:
    100
  • Mounting:
    B5
  • Material of housing:
    Aluminium

Electrical data

  • Frequency OP1 (Hz):
    50
  • Pole:
    4
  • Power OP1 (kW):
    2,2
  • Voltage OP1:
    230 V
  • Efficiency class OP1:
    IE2
  • Starting condensator (C):
    300 myF/300 V
  • Operating condensator (C):
    50 myF/450 V

Mechanical data

  • Ambient temperature:
    -20 up to +40 °C
  • Bearing arrangement DE:
    loose
  • Bearing arrangement NDE:
    loose
  • Bearing drive-end:
    6206.ZZ.C3
  • Bearing non drive-end:
    6206.ZZ.C3
  • Cable glands:
    PG11
  • Speed OP1 (1/min):
    1430
All further technical data for this product can be found in the data sheet.
ACMAAA2A041002G00000_DS_DE-EN-FR-PL-CZ.pdf ACMAAA2A041002G00000_DS_DE-EN-FR-PL-CZ0.pdf
