0,12 kW
0,12 kW

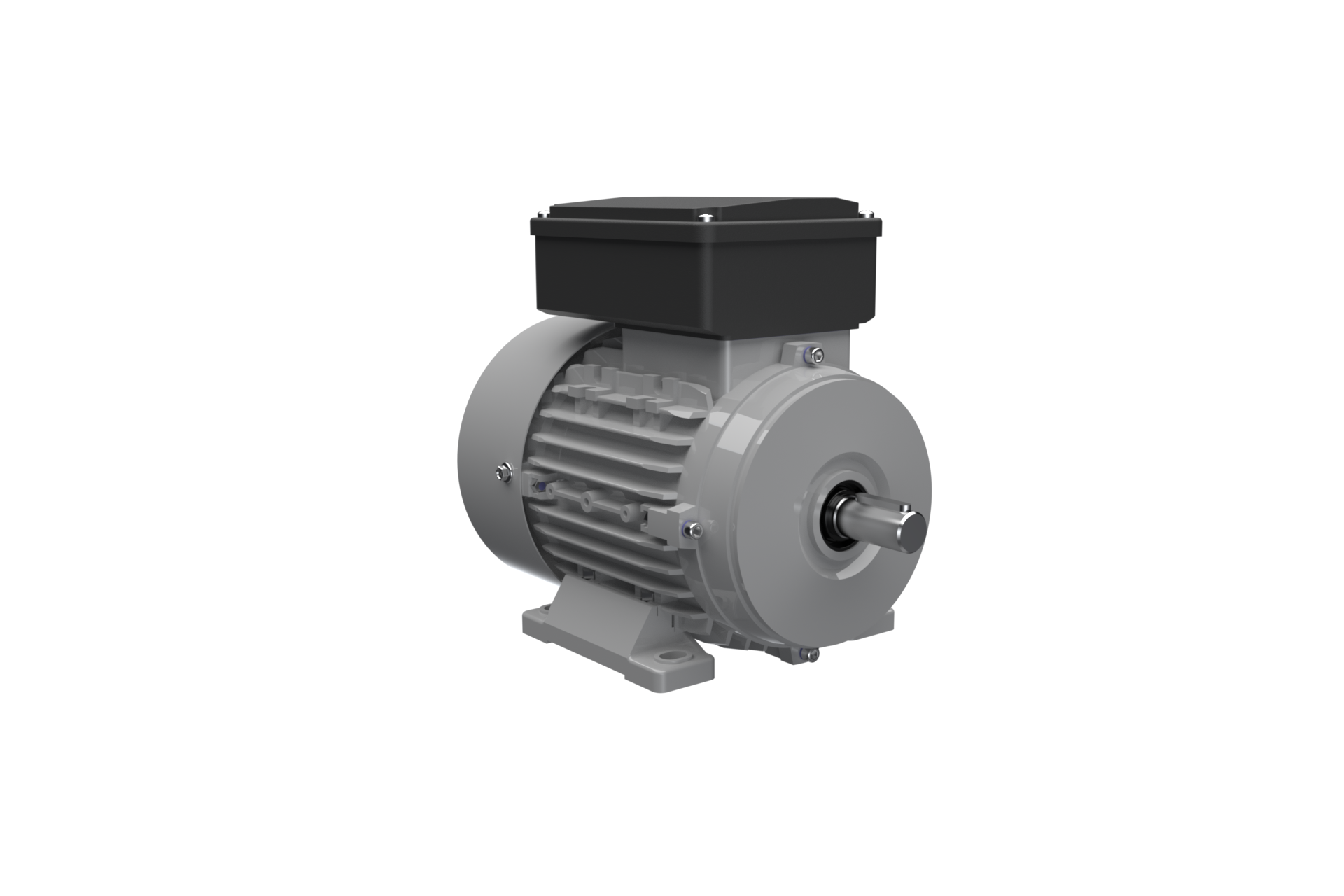

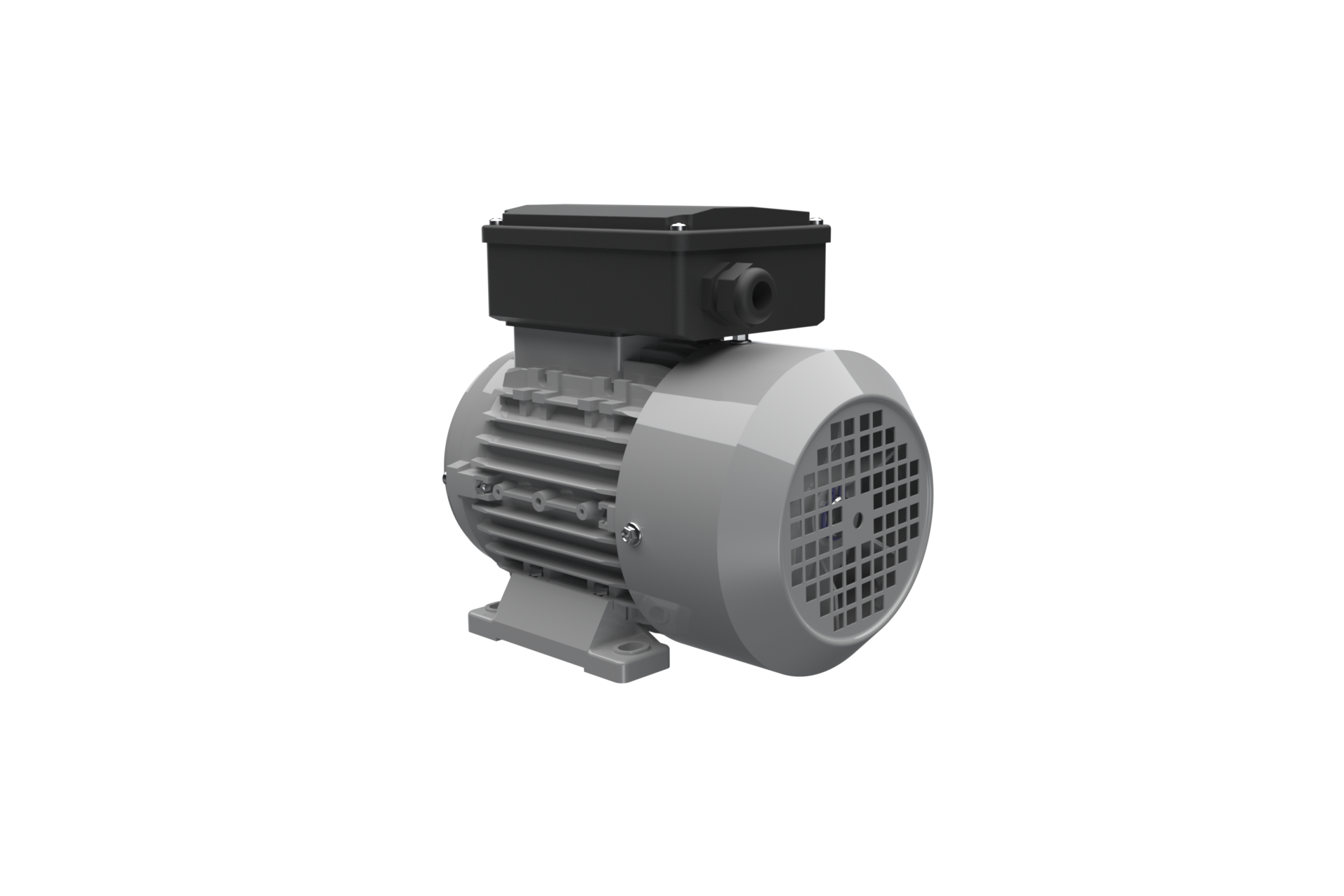

Asynchronous-Motor SP ACM 56 2
Product number: ACMAAB2B020501A00000
Motor type Single Capacitor
Speed OP1 (1/min) 2800
Mounting B3
Frame size 56
Power OP1 (kW) 0,12
Voltage OP1 230 V
Motor type Single Capacitor
Speed OP1 (1/min) 2800
Insulation class F
Protection class (IP) IP55
Pole 2
Duty type OP1 S1
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise
General data
- Color:RAL7030
- Direction of rotation:right
- Duty type OP1:S1
- Insulation class utilization:B
- Motor design:Standard
- Motor type:Single Capacitor
- Protection class (IP):IP55
- Terminal box orientation:Cable glands to non drive-end
- Technology:AC Asynchronous-Motor
- Frame size:56
- Mounting:B3
- Material of housing:Aluminium
Electrical data
- Frequency OP1 (Hz):50
- Pole:2
- Power OP1 (kW):0,12
- Voltage OP1:230 V
Mechanical data
- Ambient temperature:-20 up to +40 °C
- Bearing arrangement DE:loose
- Bearing arrangement NDE:loose
- Bearing drive-end:6201.ZZ.C3
- Bearing non drive-end:6201.ZZ.C3
- Cable glands:1xM16
- Shaft dimension drive-end:9 x 20 mm
- Speed OP1 (1/min):2800
