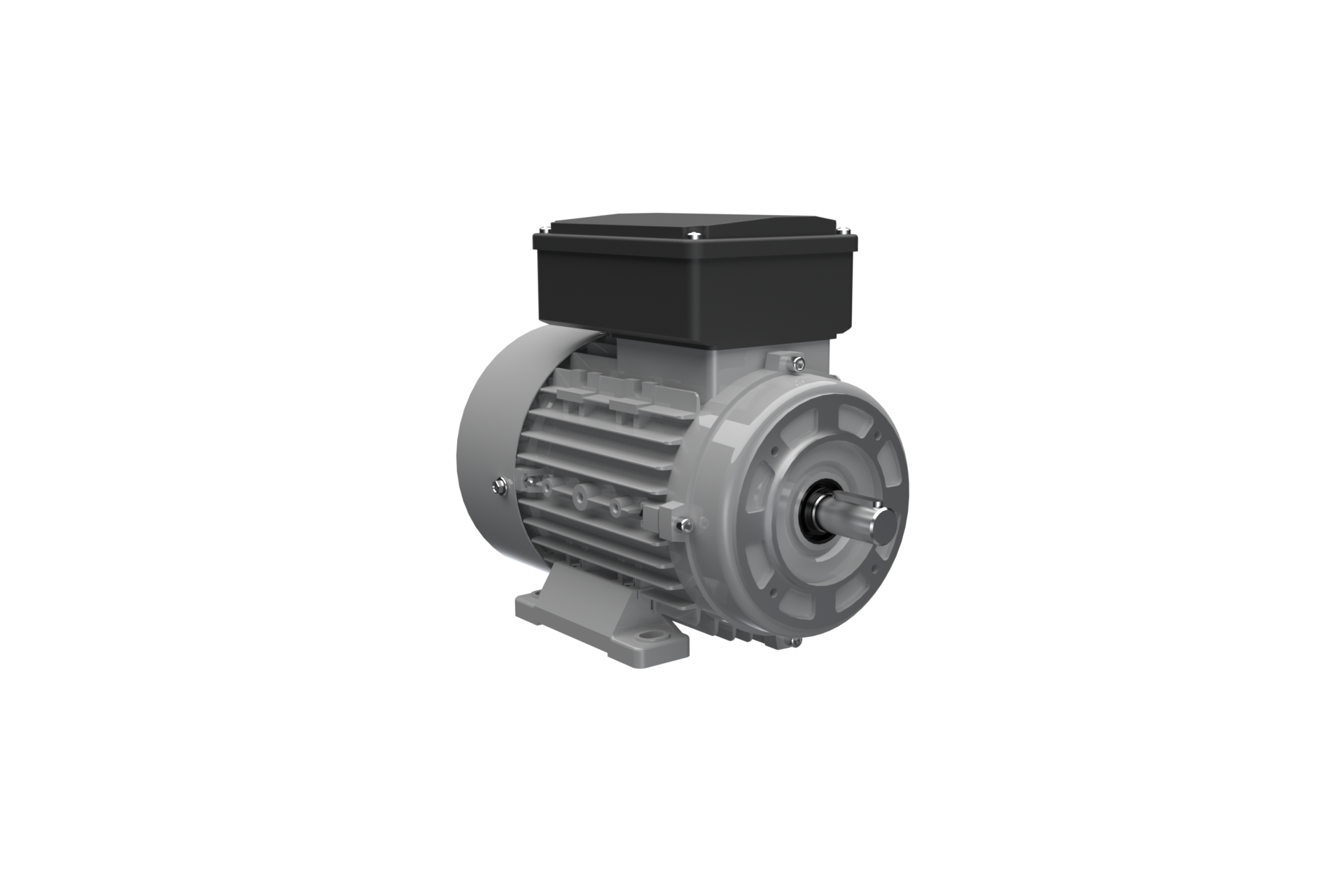

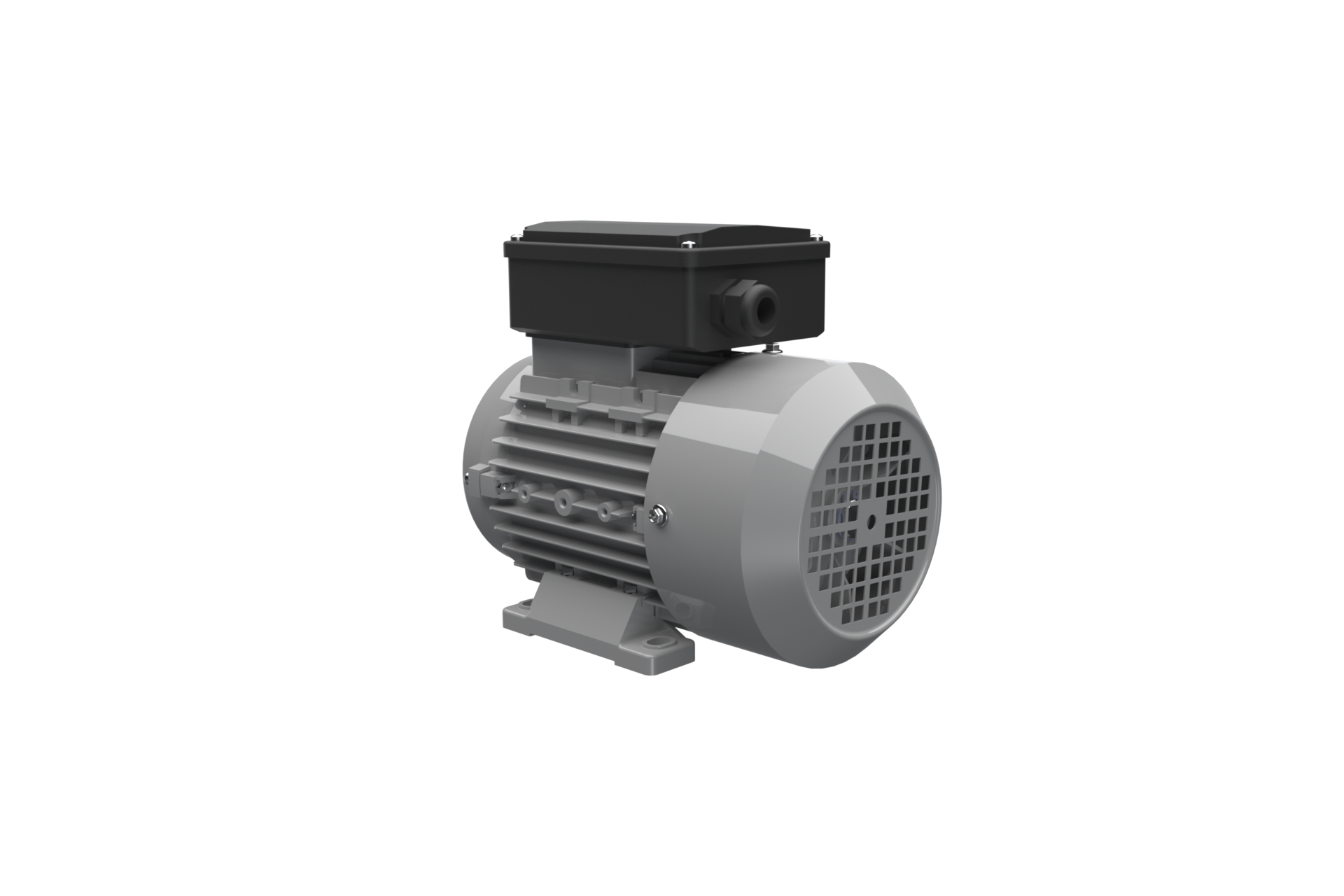

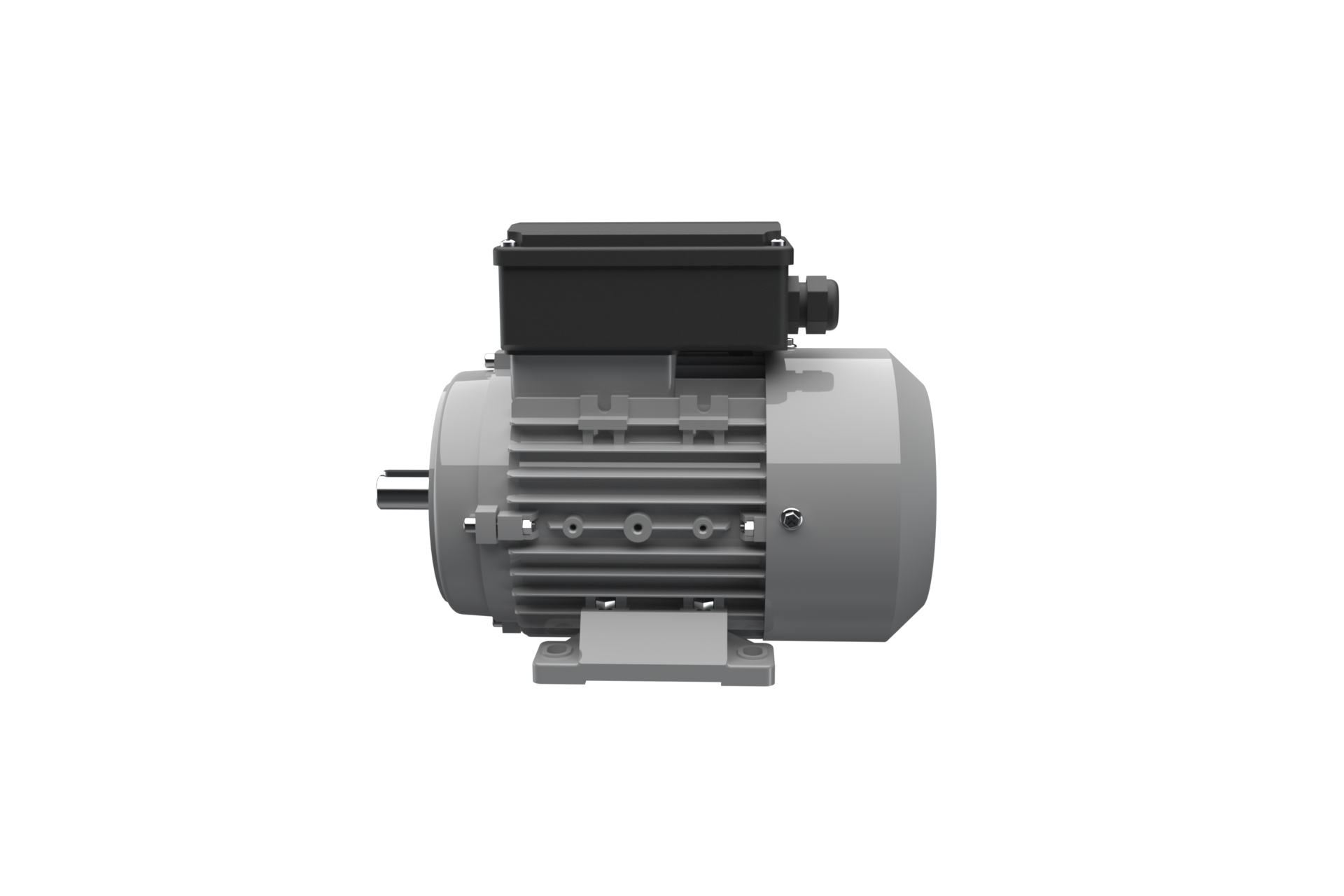

Asynchronous-Motor SP ACM 63 2

Product number: ACMAAB0A020606A00000
Motor type Single Capacitor
Speed OP1 (1/min) 2800
Mounting B34a
Frame size 63
Power OP1 (kW) 0,18
Voltage OP1 230 V
Motor type Single Capacitor
Speed OP1 (1/min) 2800
Insulation class F
Protection class (IP) IP55
Pole 2
Duty type OP1 S1

Description

Asynchronous-Motor SP ACM 63 2
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise

General data

  • Color:
    RAL7030
  • Direction of rotation:
    right
  • Duty type OP1:
    S1
  • Insulation class utilization:
    B
  • Motor design:
    Standard
  • Motor type:
    Single Capacitor
  • Protection class (IP):
    IP55
  • Terminal box orientation:
    Cable glands to non drive-end
  • Technology:
    AC Asynchronous-Motor
  • Frame size:
    63
  • Mounting:
    B34a
  • Material of housing:
    Aluminium

Electrical data

  • Frequency OP1 (Hz):
    50
  • Pole:
    2
  • Power OP1 (kW):
    0,18
  • Voltage OP1:
    230 V
  • Operating condensator (C):
    8 myF/450 V

Mechanical data

  • Ambient temperature:
    -20 up to +40 °C
  • Bearing arrangement DE:
    loose
  • Bearing arrangement NDE:
    loose
  • Bearing drive-end:
    6201.ZZ.C3
  • Bearing non drive-end:
    6201.ZZ.C3
  • Cable glands:
    1xM16
  • Shaft dimension drive-end:
    11 x 23 mm
  • Speed OP1 (1/min):
    2800
All further technical data for this product can be found in the data sheet.
ACMAAB0A020606A00000_DS_DE-EN-FR-PL-CZ.pdf DIM_01FBSPB34BK_77336.pdf
