0,12 kW
0,12 kW

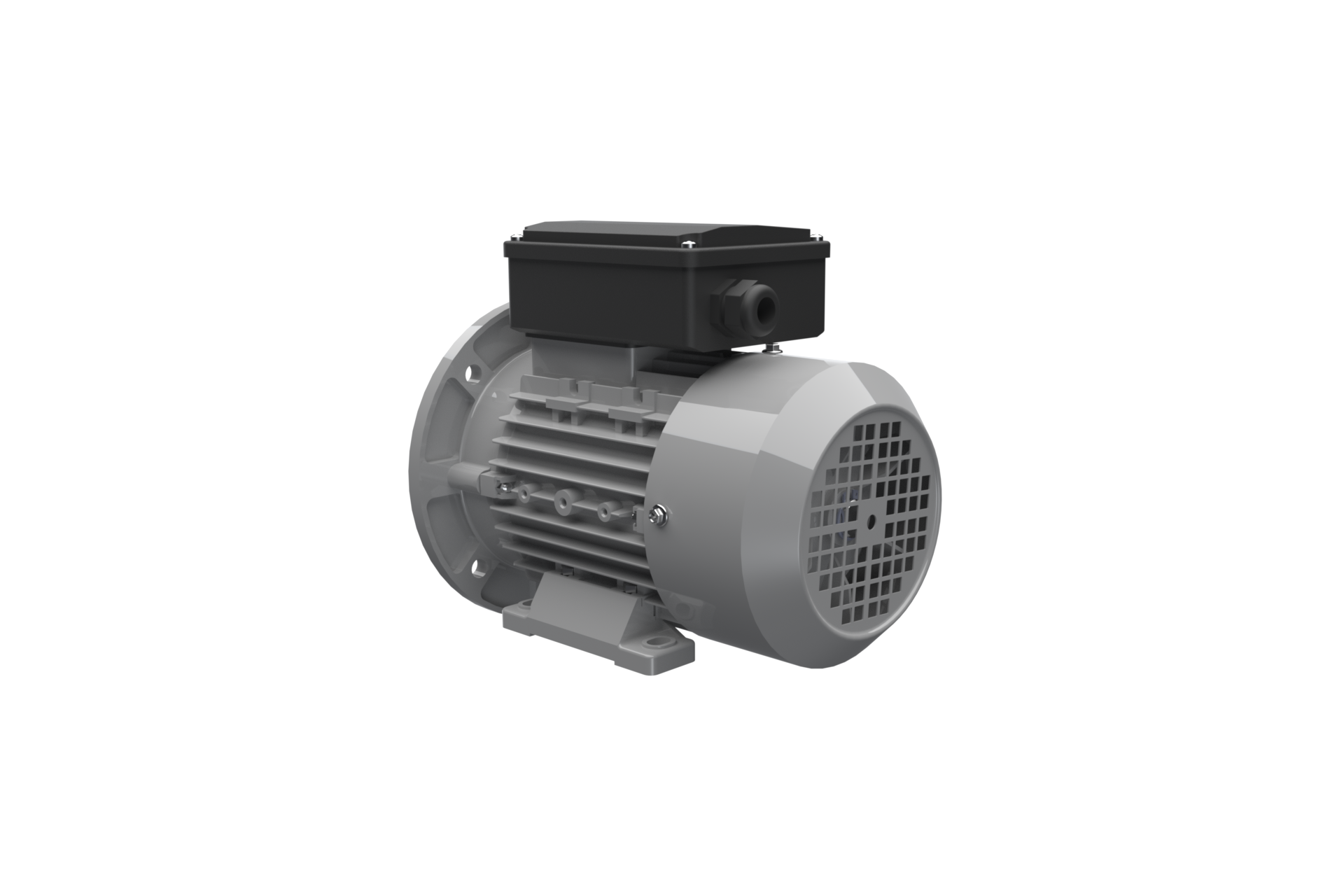

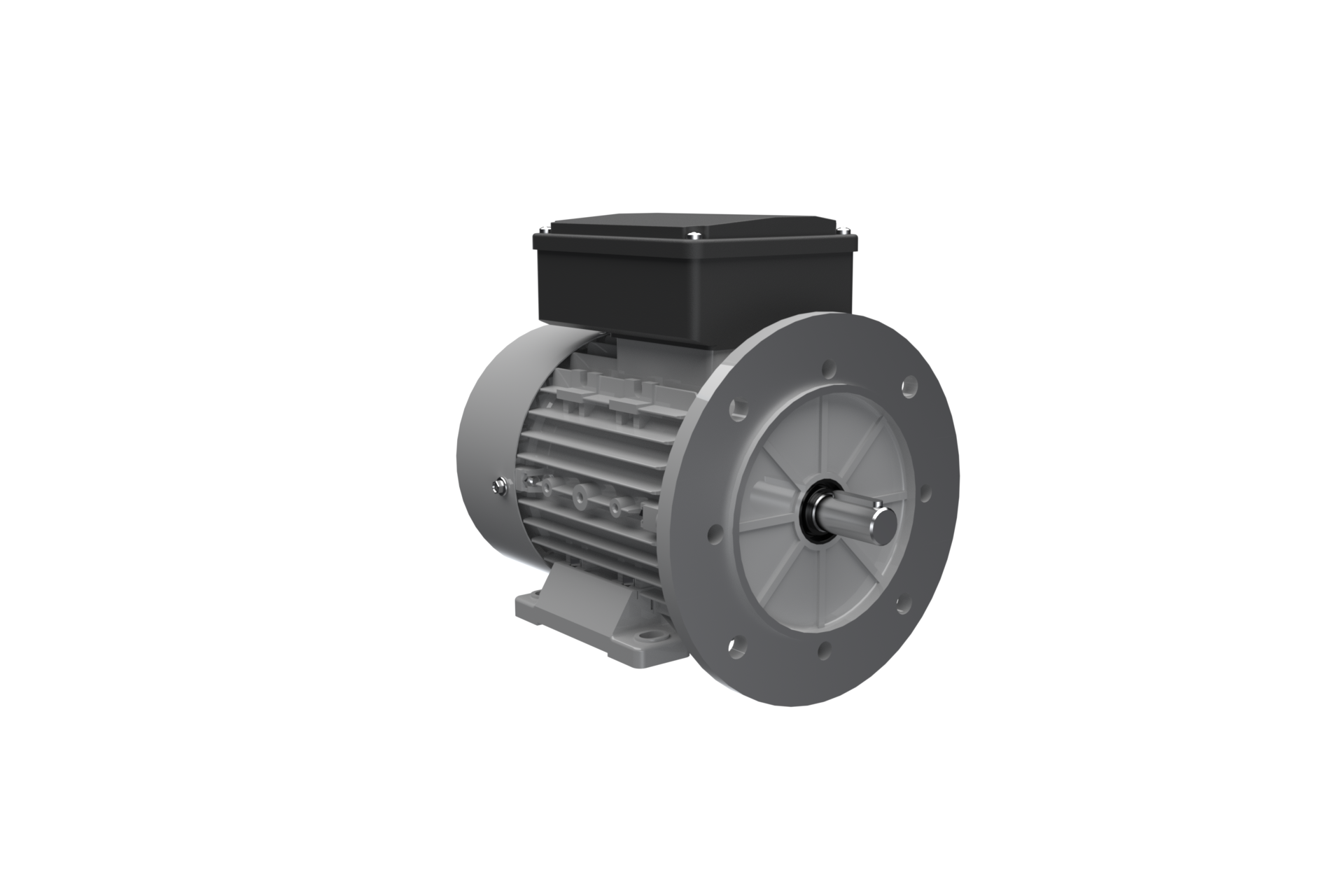

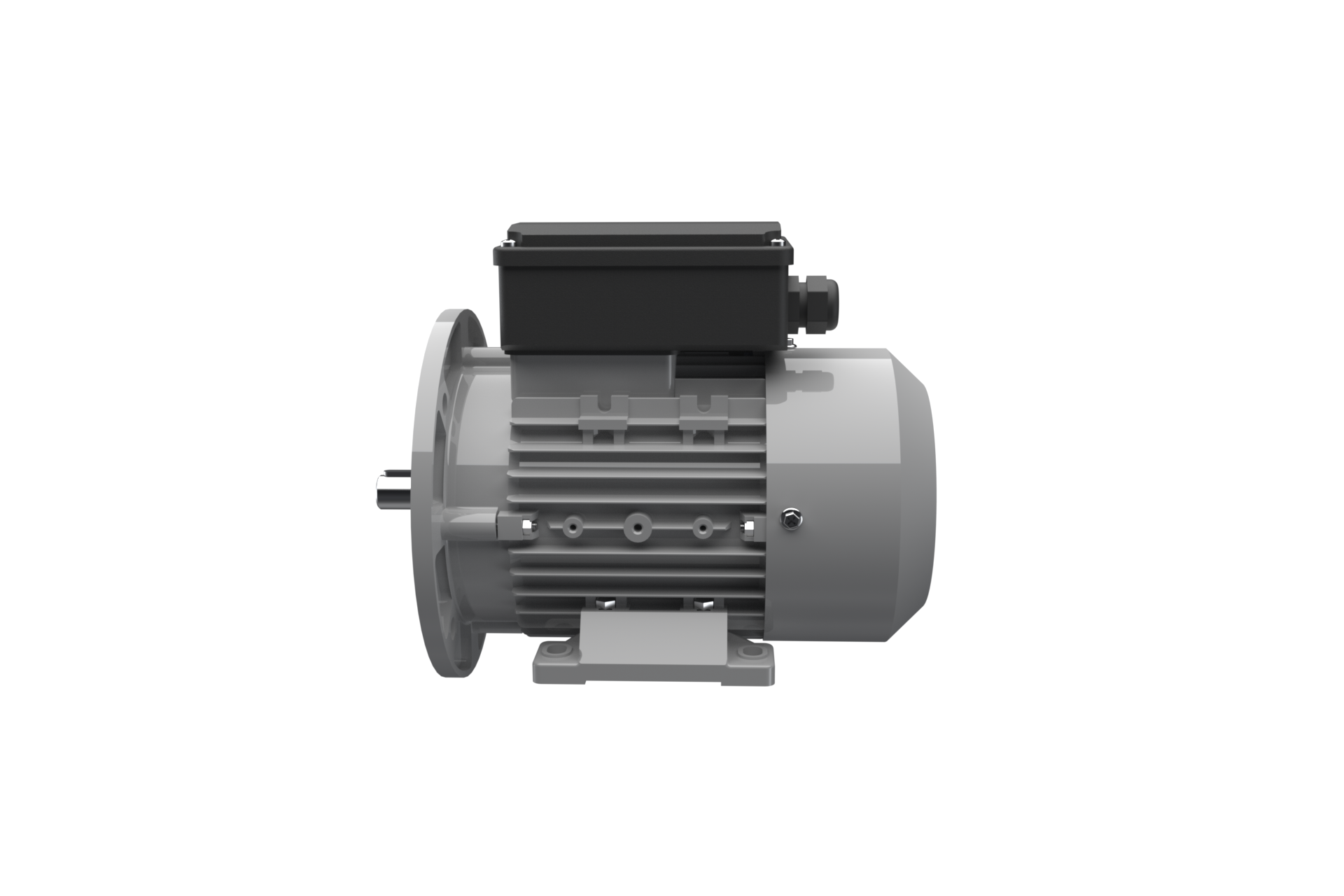

Asynchronous-Motor SP ACM 63 4
Product number: ACMAAB0A040605A00000
Motor type Single Capacitor
Speed OP1 1400
Mounting B35
Frame size 63
Power OP1 0,12
Voltage OP1 230 V
Motor type Single Capacitor
Speed OP1 1400
Insulation class F
Protection class (IP) IP55
Pole 4
Duty type OP1 S1
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise
General data
- Balancing:Half key
- Color:RAL7030
- Direction of rotation:right
- Frame size:63
- Insulation class utilization:B
- Material of housing:Aluminium
- Motor type:Single Capacitor
- Mounting:B35
Electrical data
- Frequency OP1:50
- Pole:4
- Power OP1:0,12
- Starting current factor OP1:3,2
- Starting torque factor OP1:0,4
- Voltage OP1:230 V
Mechanical data
- Speed OP1:1400
- Torque OP1:0,82
