0,37 kW IE2
0,37 kW IE2

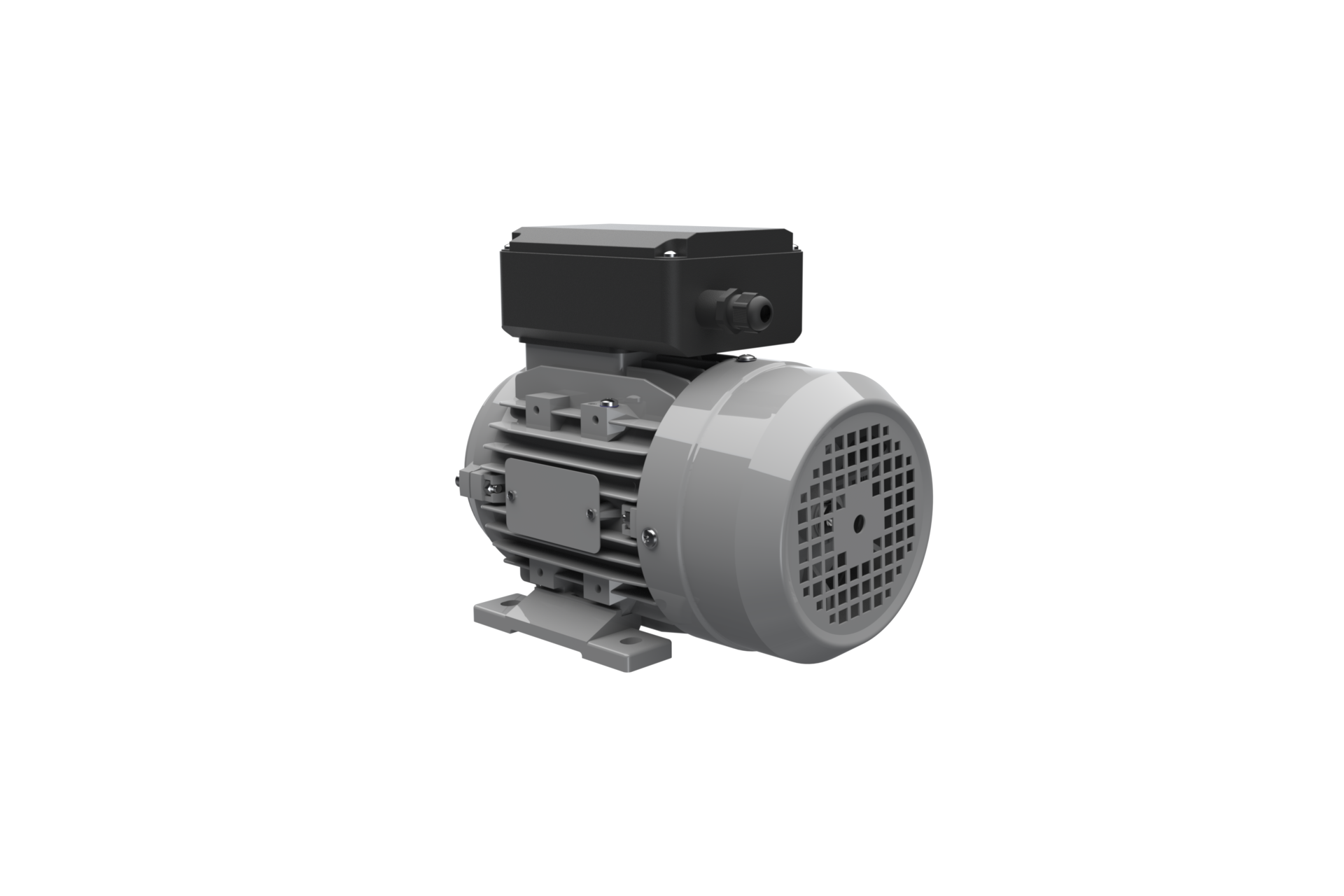

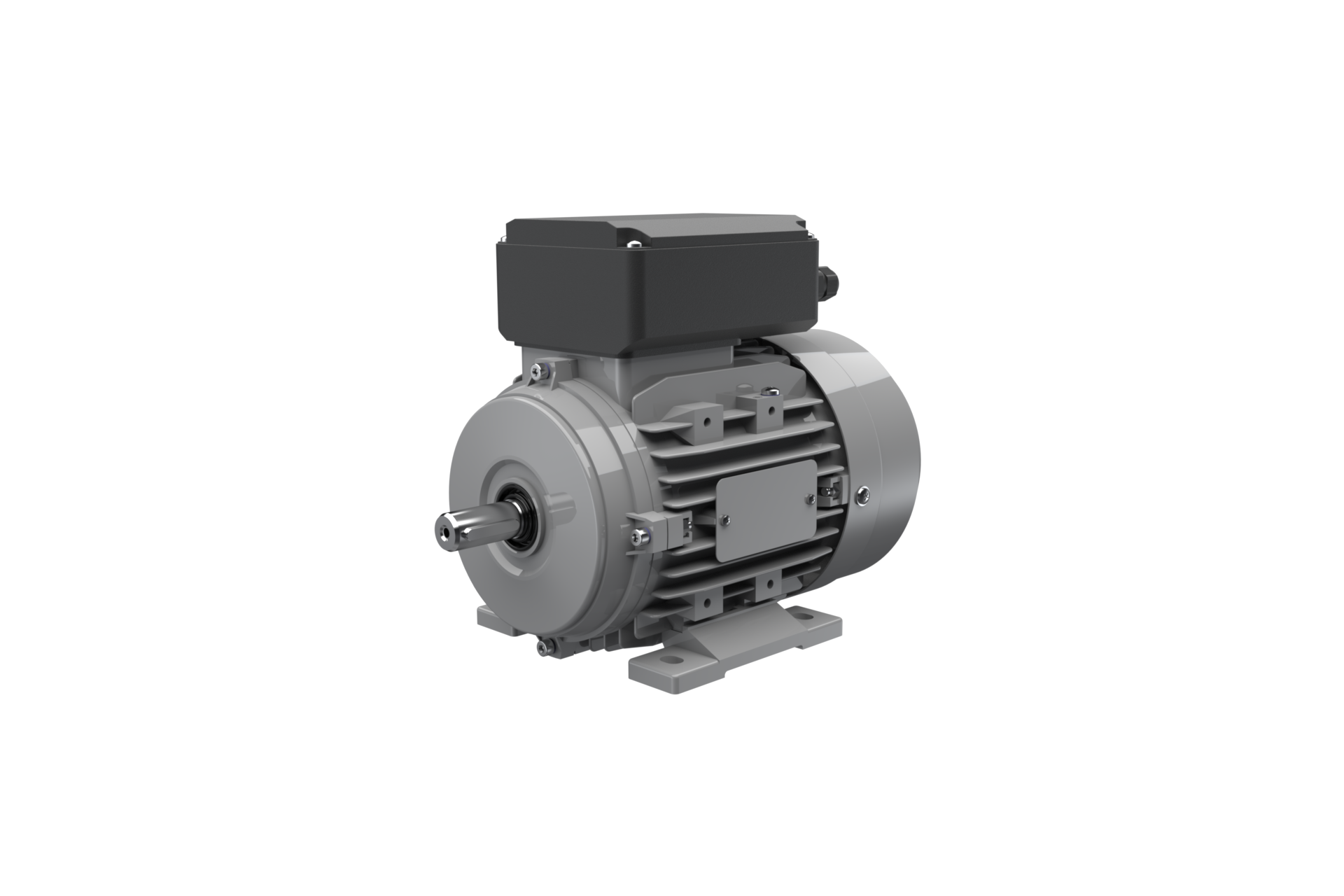

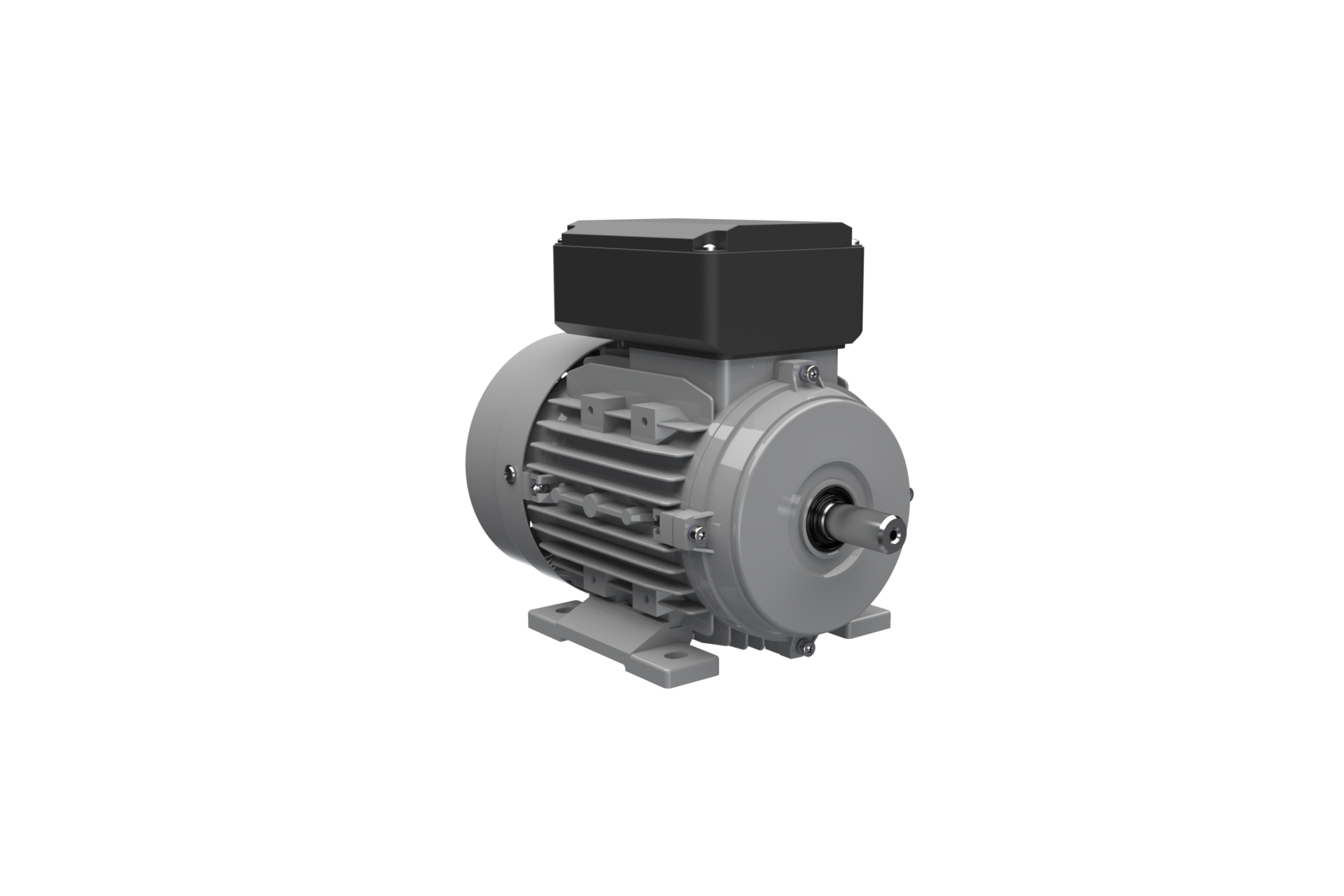

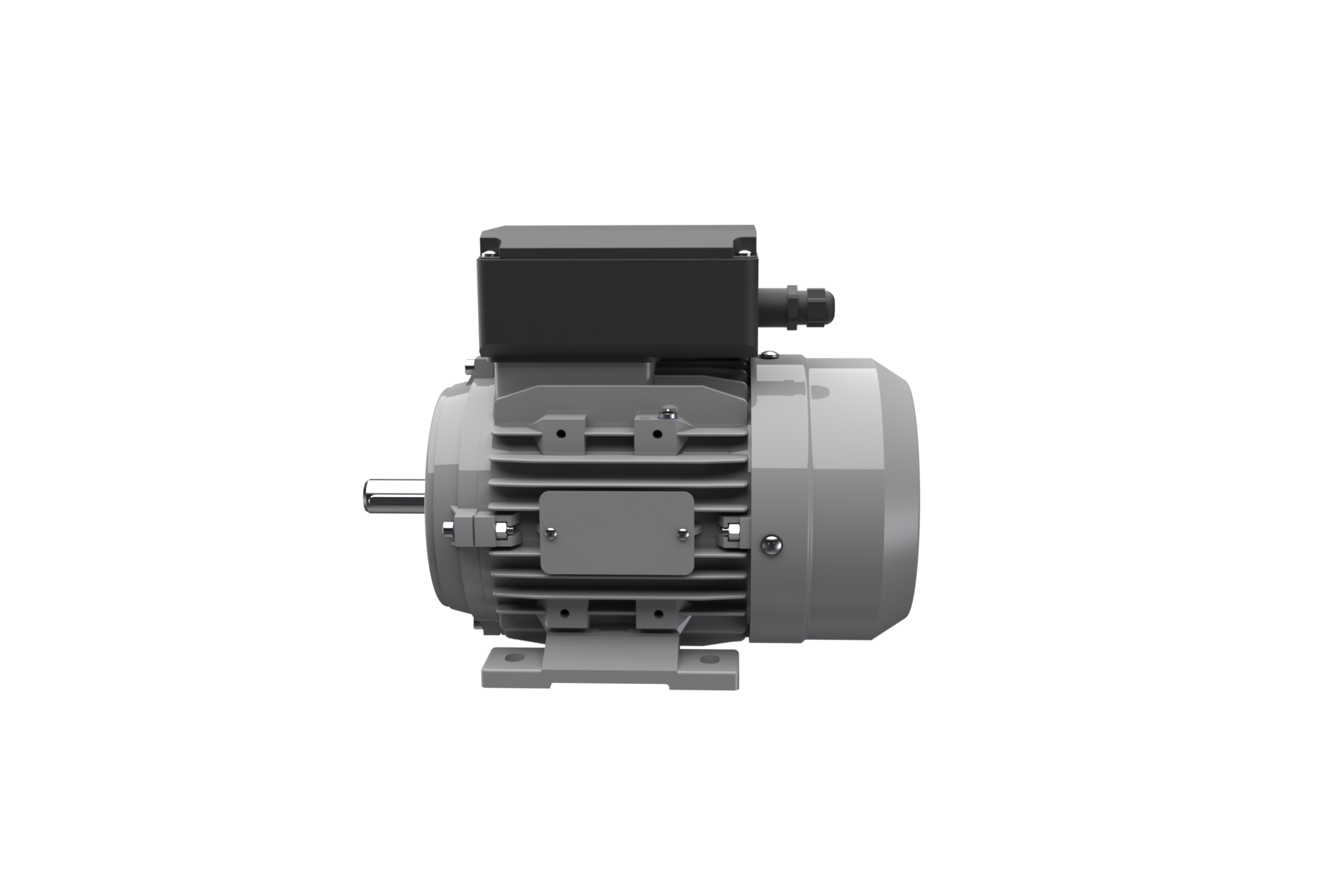

Asynchronous-Motor SP ACM 71 A 2/HE
Product number: ACMAAB2A020701G00000
Motor type Single Capacitor
Speed OP1 2800
Efficiency class OP1 IE2
Mounting B3
Frame size 71
Power OP1 0,37
Voltage OP1 230 V
Motor type Single Capacitor
Speed OP1 2800
Insulation class F
Protection class (IP) IP55
Pole 2
Duty type OP1 S1
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise
General data
- Balancing:Half key
- Color:RAL7030
- Direction of rotation:right
- Frame size:71
- Housing type:A
- Insulation class utilization:B
- Material of housing:Aluminium
- Motor type:Single Capacitor
- Mounting:B3
Electrical data
- Efficiency class OP1:IE2
- Frequency OP1:50
- Pole:2
- Power OP1:0,37
- Starting current factor OP1:4,1
- Starting torque factor OP1:0,4
- Voltage OP1:230 V
Mechanical data
- Speed OP1:2800
- Torque OP1:1,26
Data sheets & 3D Models
