2,2 kW
2,2 kW

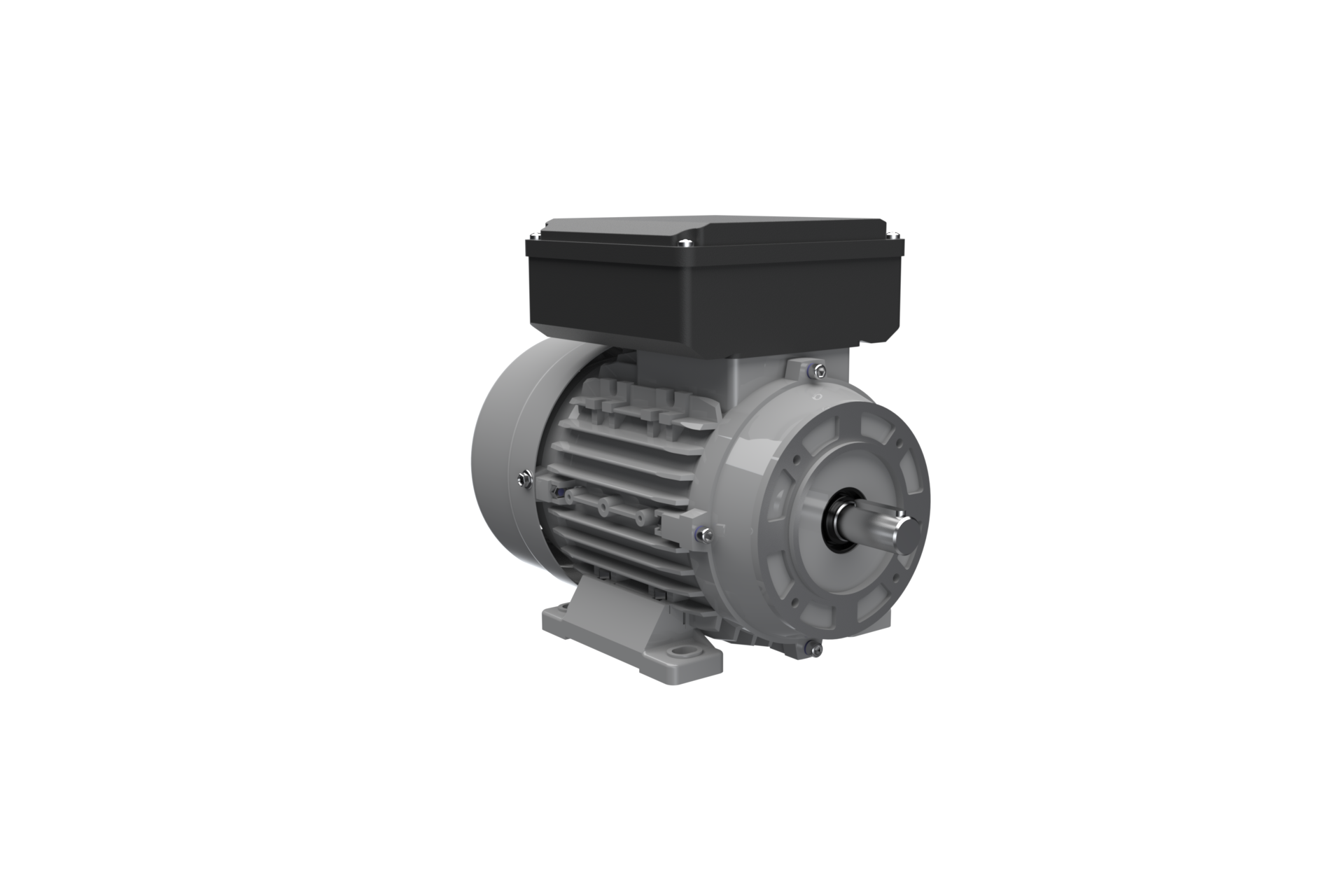

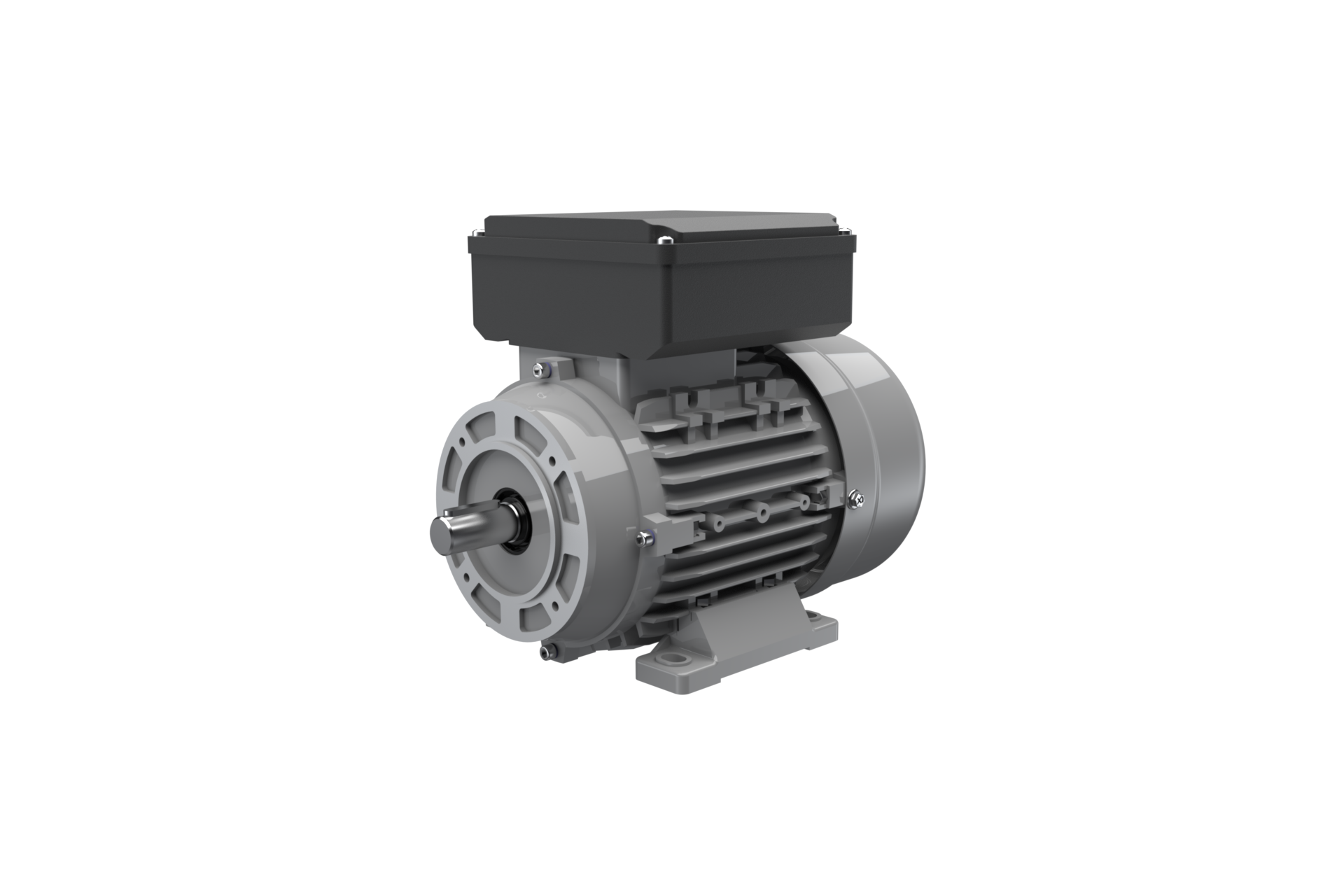

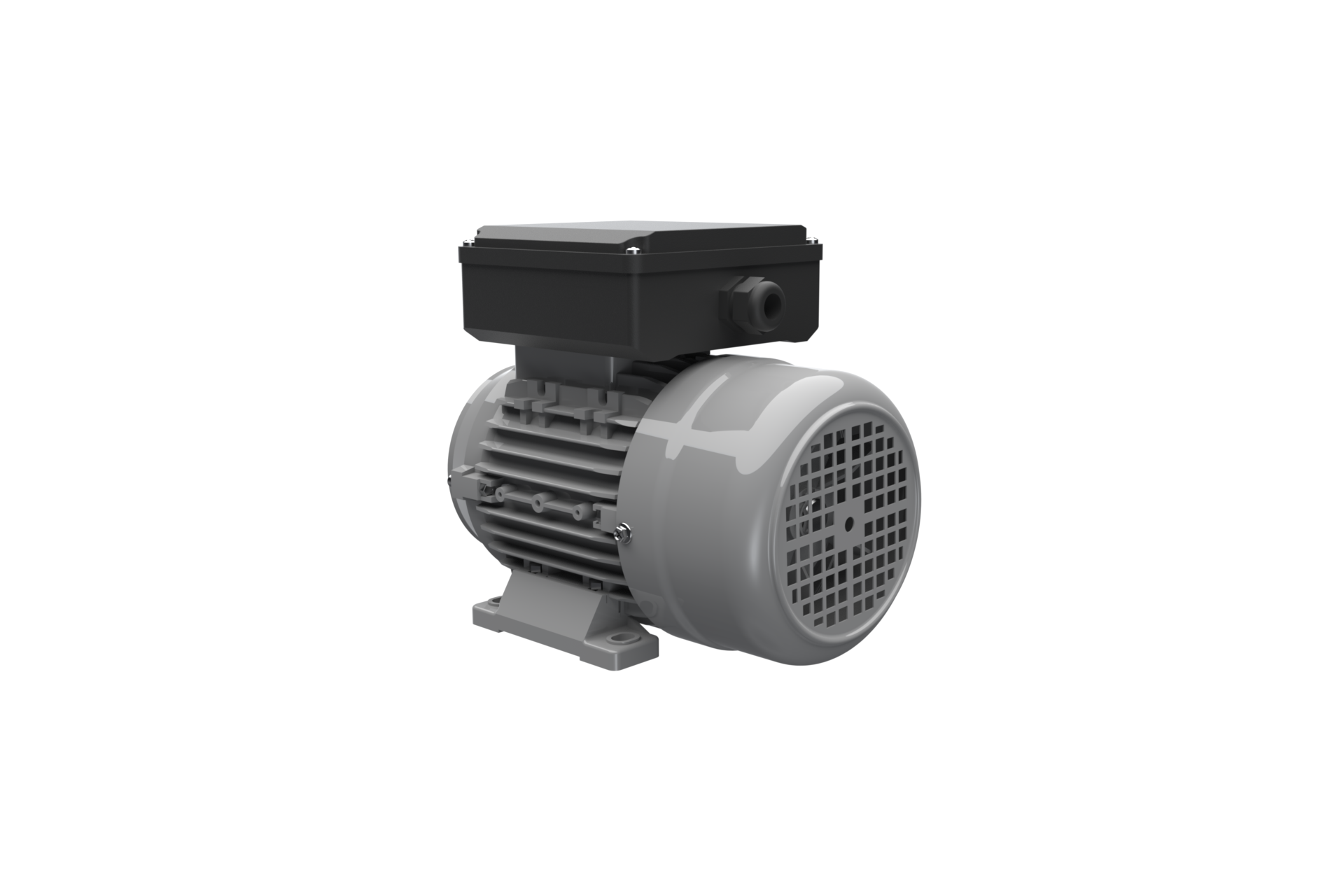

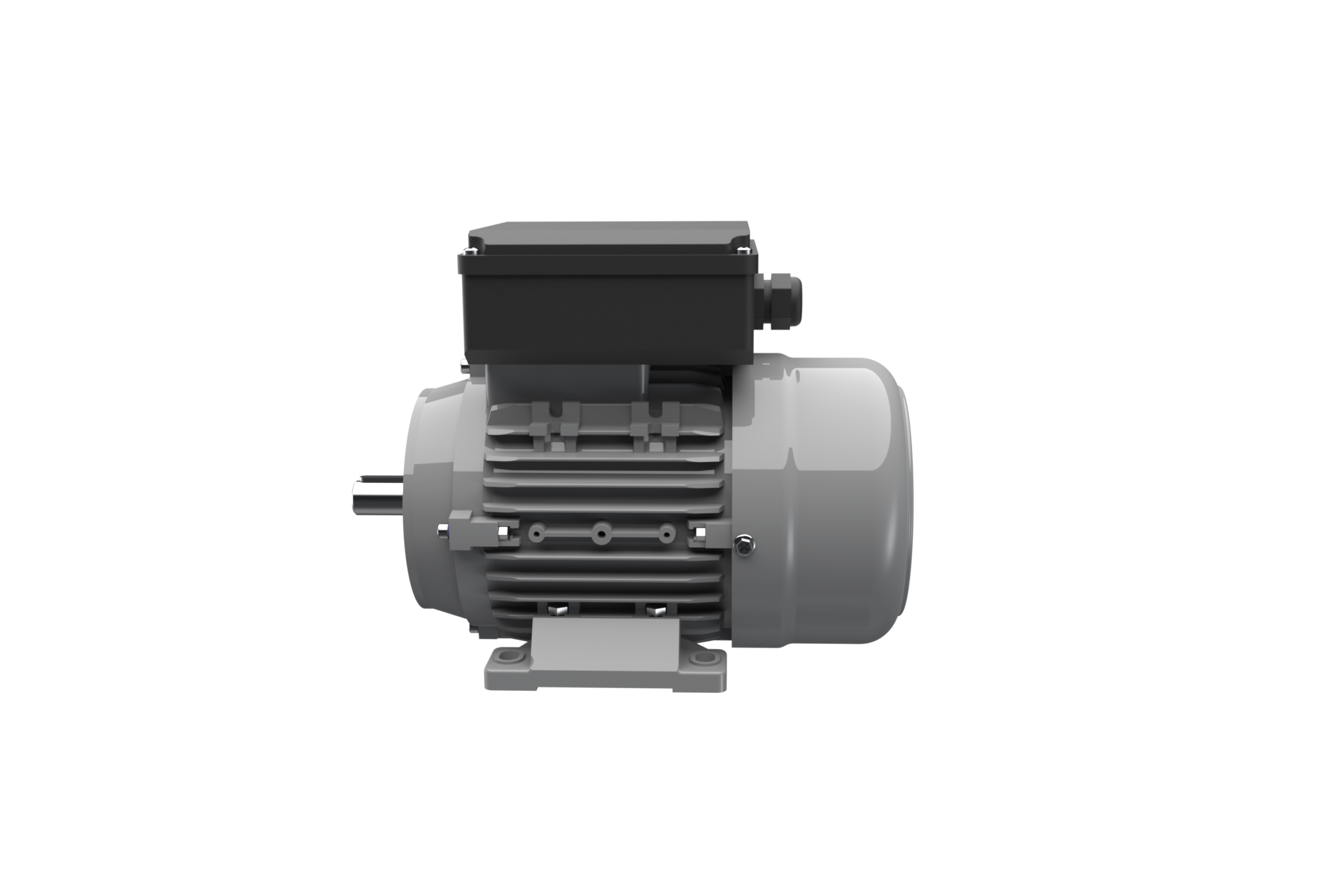

Asynchronous-Motor SP ACM 90 L 2/HT
Product number: ACMAAA0B020907A00000
Speed OP1 2800
Motor type Dual Capacitor
Mounting B34b
Frame size 90
Power OP1 2,2
Voltage OP1 230 V
Motor type Dual Capacitor
Speed OP1 2800
Insulation class F
Protection class (IP) IP55
Pole 2
Duty type OP1 S1
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise
General data
- Balancing:Half key
- Color:RAL7030
- Direction of rotation:right
- Frame size:90
- Housing type:L
- Insulation class utilization:B
- Material of housing:Aluminium
- Motor type:Dual Capacitor
- Mounting:B34b
Electrical data
- Frequency OP1:50
- Pole:2
- Power OP1:2,2
- Starting current factor OP1:5,9
- Starting torque factor OP1:2,5
- Voltage OP1:230 V
Mechanical data
- Speed OP1:2800
- Torque OP1:7,5
Data sheets & 3D Models
Similar products
2,2 kW IE2

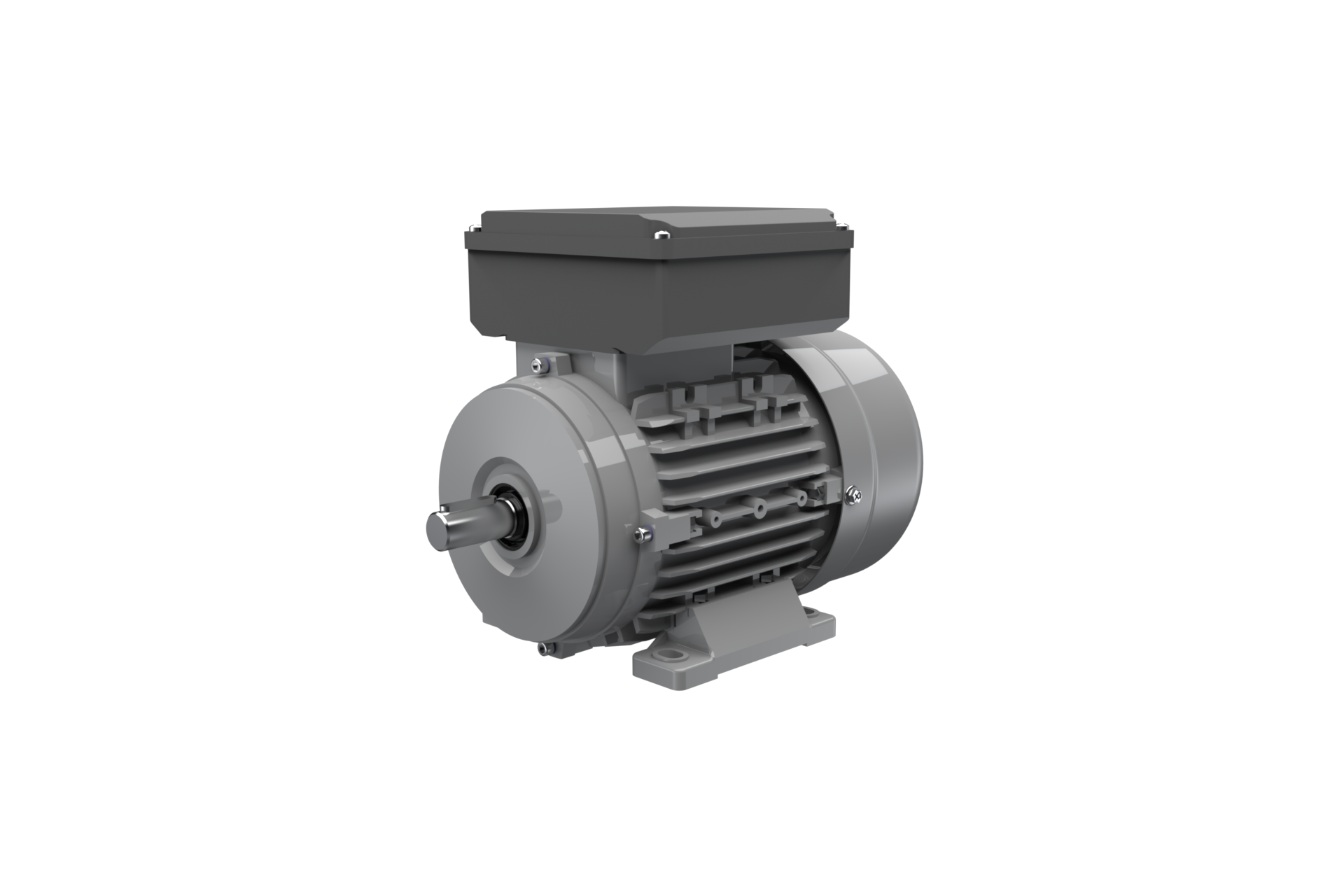

Asynchronous-Motor SP ACM 90 L 2/HE-HT
Mounting B3
Frame size 90
Power OP1 2,2
Voltage OP1 230 V
Motor type Dual Capacitor
Speed OP1 2880
Insulation class F
Protection class (IP) IP55
Pole 2
Duty type OP1 S1
1,5 kW

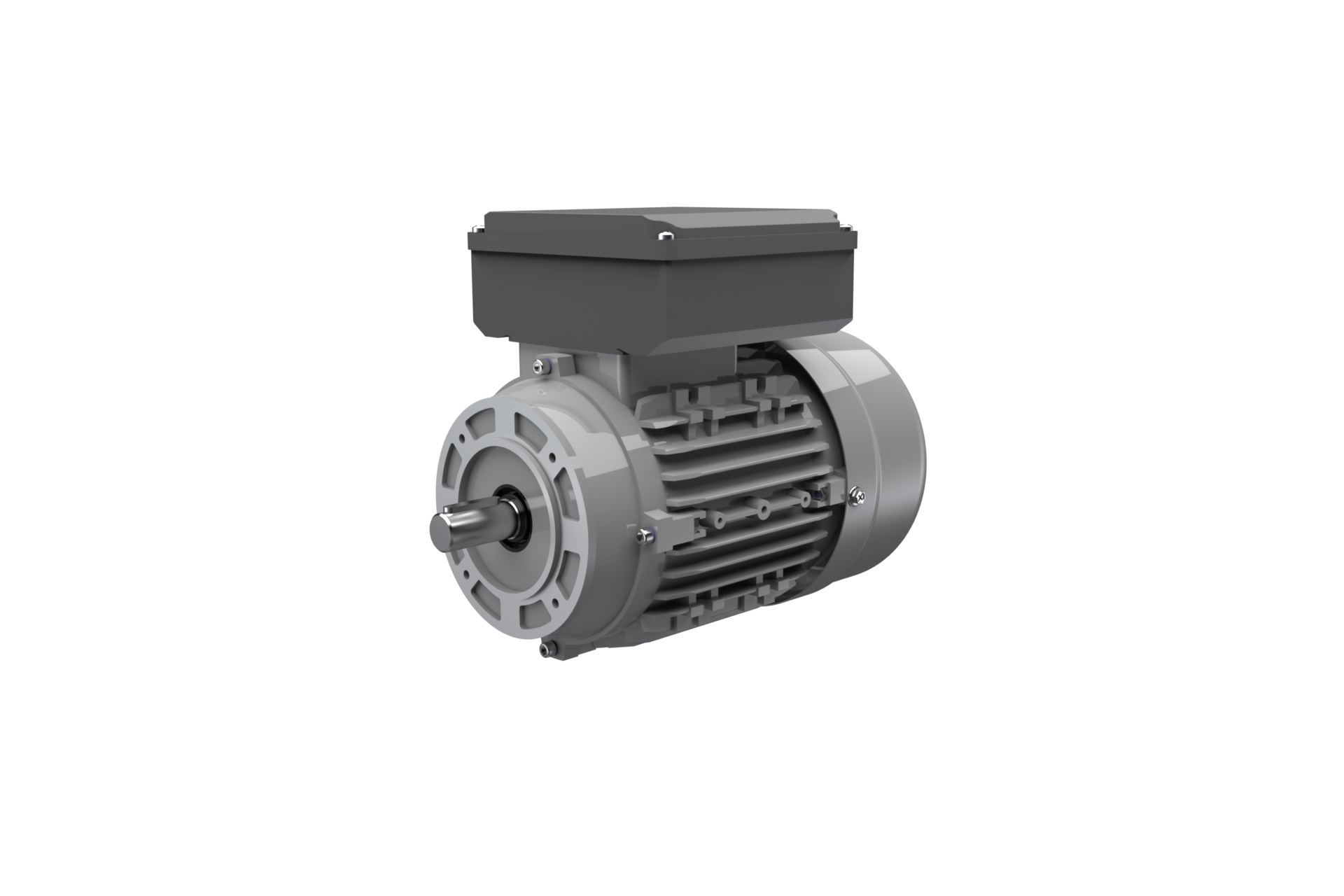

Asynchronous-Motor SP ACM 90 S 2/HT
