22 kW IE3 PTC 150°C
22 kW IE3 PTC 150°C

Three-Phase-Asynchronous-Motor FCM 180 L 4 /PHE

Product number: IE3AC18L4004
Eff.Cl.50Hz IE3
Type of motor 3~
Rotation speed (1/min) 1470/1764
Frame size 180
Type of motor 3~
Poles 4
Mounting B5
Duty S1
Insulationclass F/B
Protection class IP55
Type designation FCM

Description

Three-phase asynchronous motor, suitable for a wide range of industrial drive applications
Robust grey cast iron construction and high efficiency
Products of this type can be extensively modified.
3D - Model
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise

General data

  • Eff.Cl.50Hz:
    IE3
  • Terminal box location:
    top DE
  • Terminal box orientation:
    cable gland to the right side
  • Type designation:
    FCM
  • Eff.Cl.60Hz:
    IE3
  • Mounting:
    B5
  • Frame size:
    180
  • Frame material:
    Cast iron
  • Atex:
    -
  • Duty:
    S1
  • Frame execution:
    L
  • Insulationclass:
    F/B
  • Color:
    RAL7030
  • Protection class:
    IP55

Electrical data

  • Power 1 50Hz:
    22
  • Power 1 60Hz:
    22
  • Poles:
    4
  • Type of motor:
    3~
  • Voltage 50Hz (V):
    400/690
  • Voltage 60Hz (V):
    460/795
  • Frequency (Hz):
    50/60
  • Connection:
    Δ/Y
  • Capacitor:
    -
  • Rotation speed (1/min):
    1470/1764

Mechanical data

  • Ambient temperature (°C):
    -20 up to +40
  • Bearing DE:
    6311.ZZ.C3
  • Protection winding:
    PTC 150°C
  • Cable gland size (cable connection):
    2xM40x1,5
  • Cable gland size (option):
    M20x1,5
  • Mounting of bearing DE:
    loose bearing
  • Mounting of bearing NDE:
    fixed bearing
  • Shaft end:
    48 x 110
All further technical data for this product can be found in the data sheet.
DATENBLATT_IE3AC18L4004_DE DATENBLATT_IE3AC18L4004_GB DATENBLATT_IE3AC18L4004_FR DATENBLATT_IE3AC18L4004_CZ DATENBLATT_IE3AC18L4004_PL

Similar products

22 kW IE3 PTC 150°C

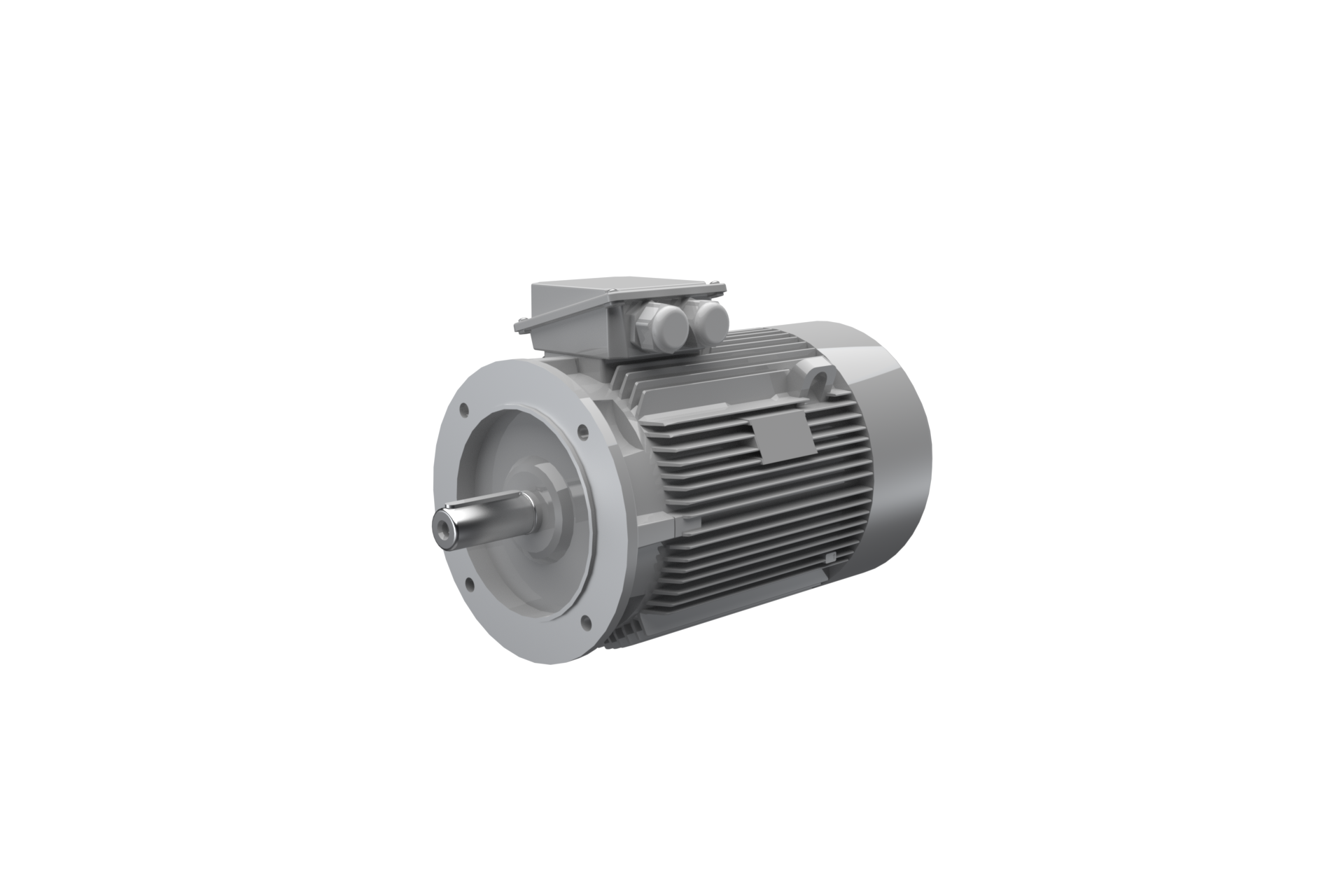

Three-Phase-Asynchronous-Motor FOA 180 L 4 /PHE
Three-Phase-Asynchronous-Motor FOA 180 L 4 /PHE
Frame size 180
Type of motor 3~
Poles 4
Mounting B5
Duty S1
Insulationclass F/B
Protection class IP55
Type designation FOA
22 kW IE3 PTC 150°C

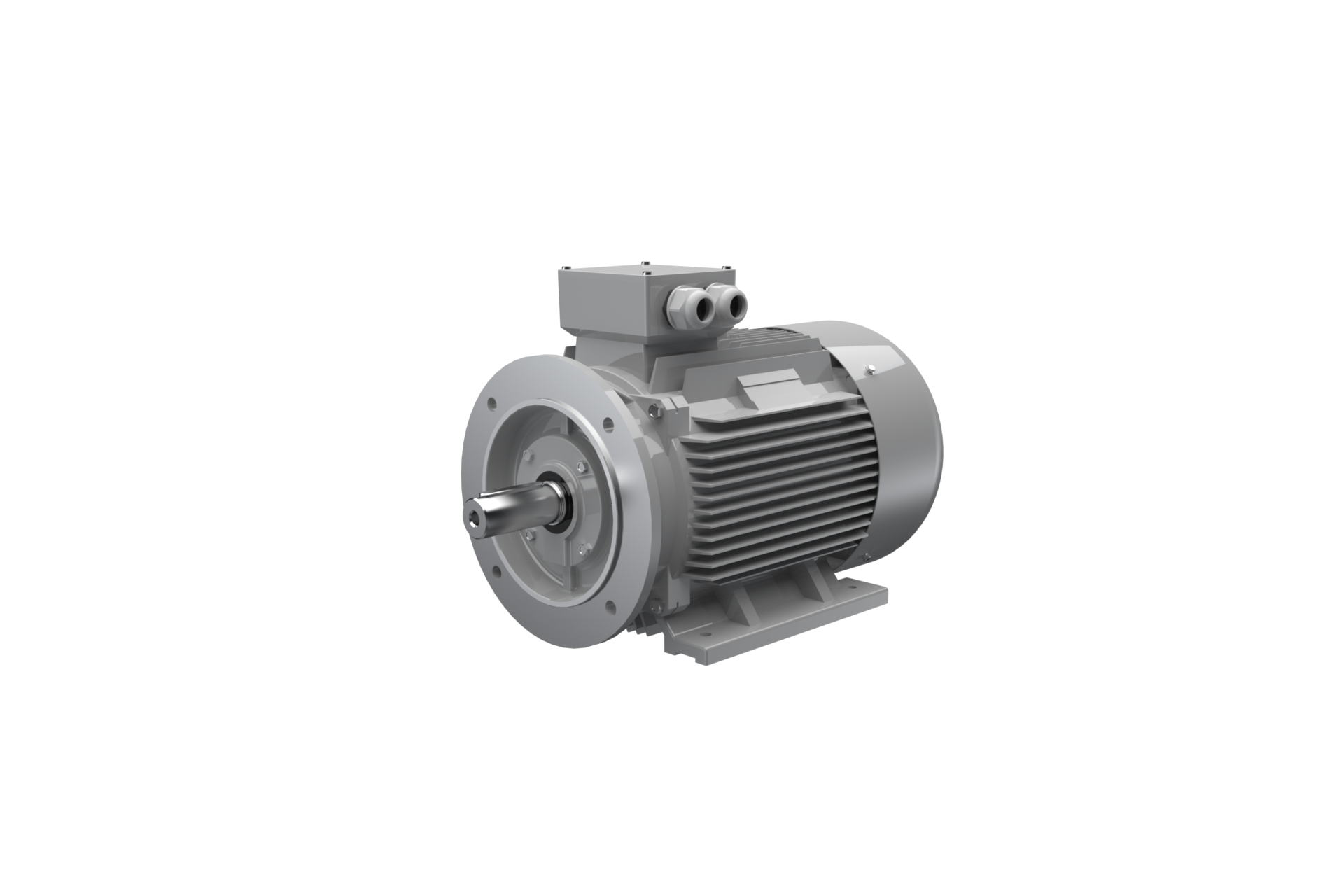

Three-Phase-Asynchronous-Motor FCMP 180 L 4 /PHE
