16,5/3,8 kW PTC 150°C
16,5/3,8 kW PTC 150°C

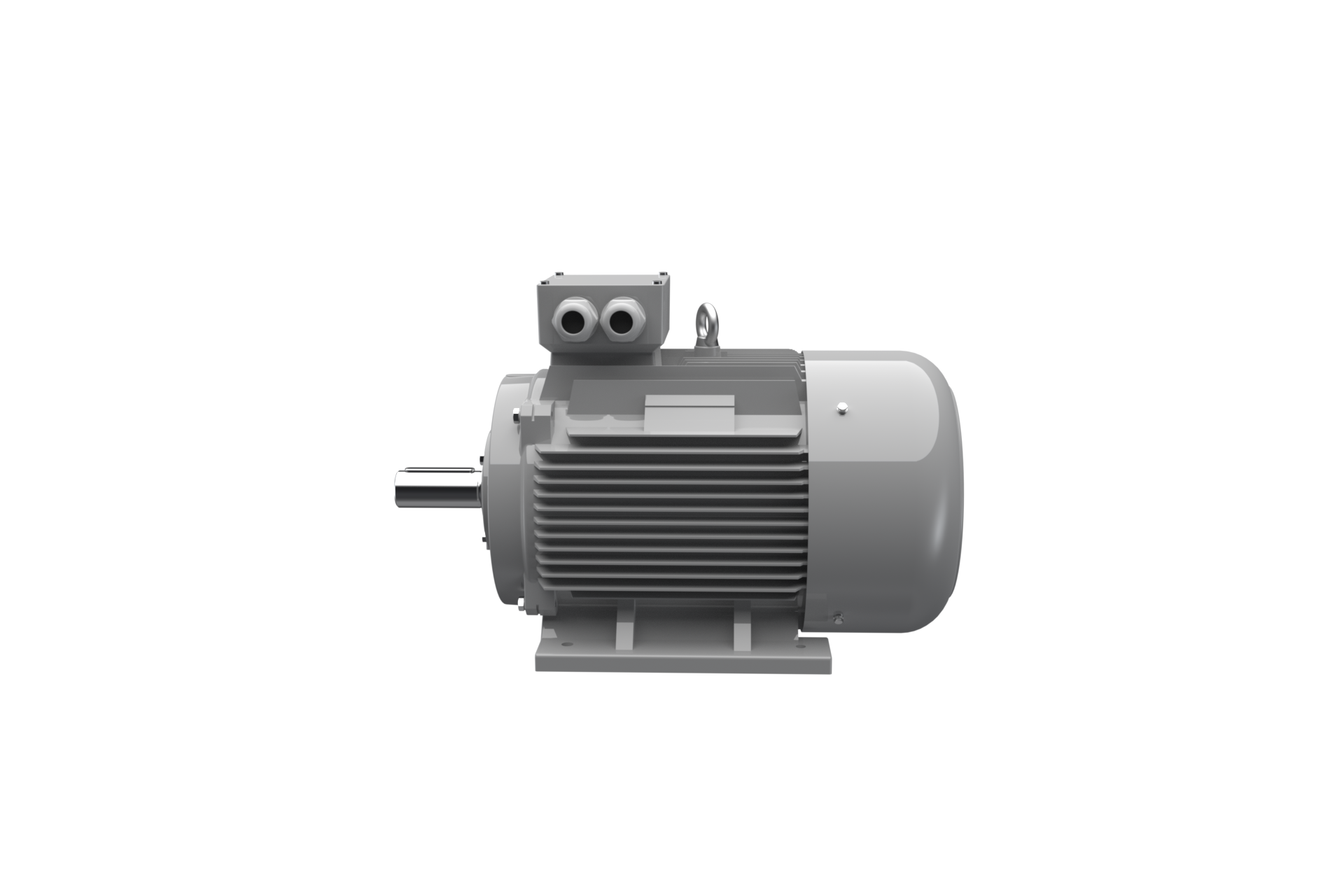

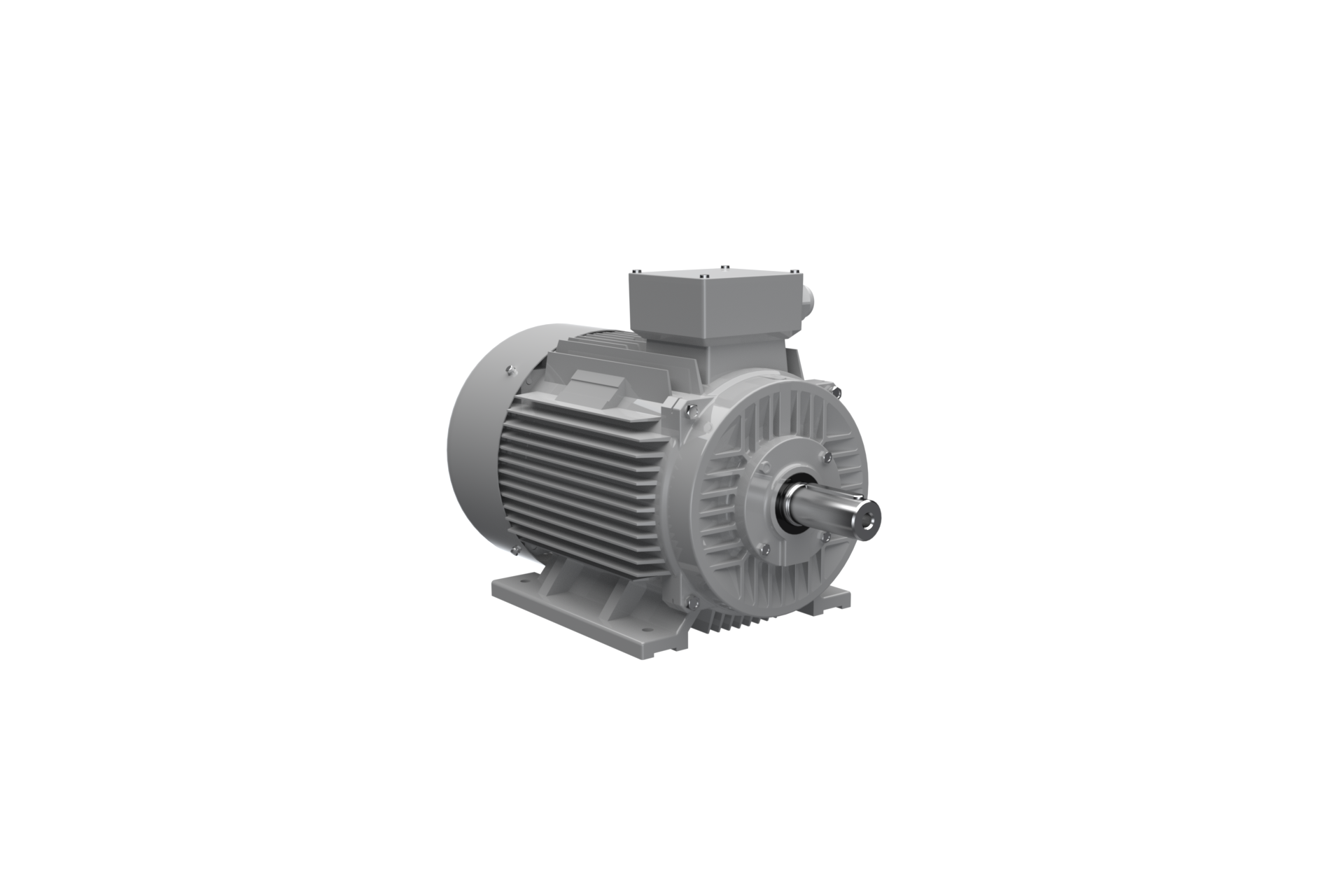

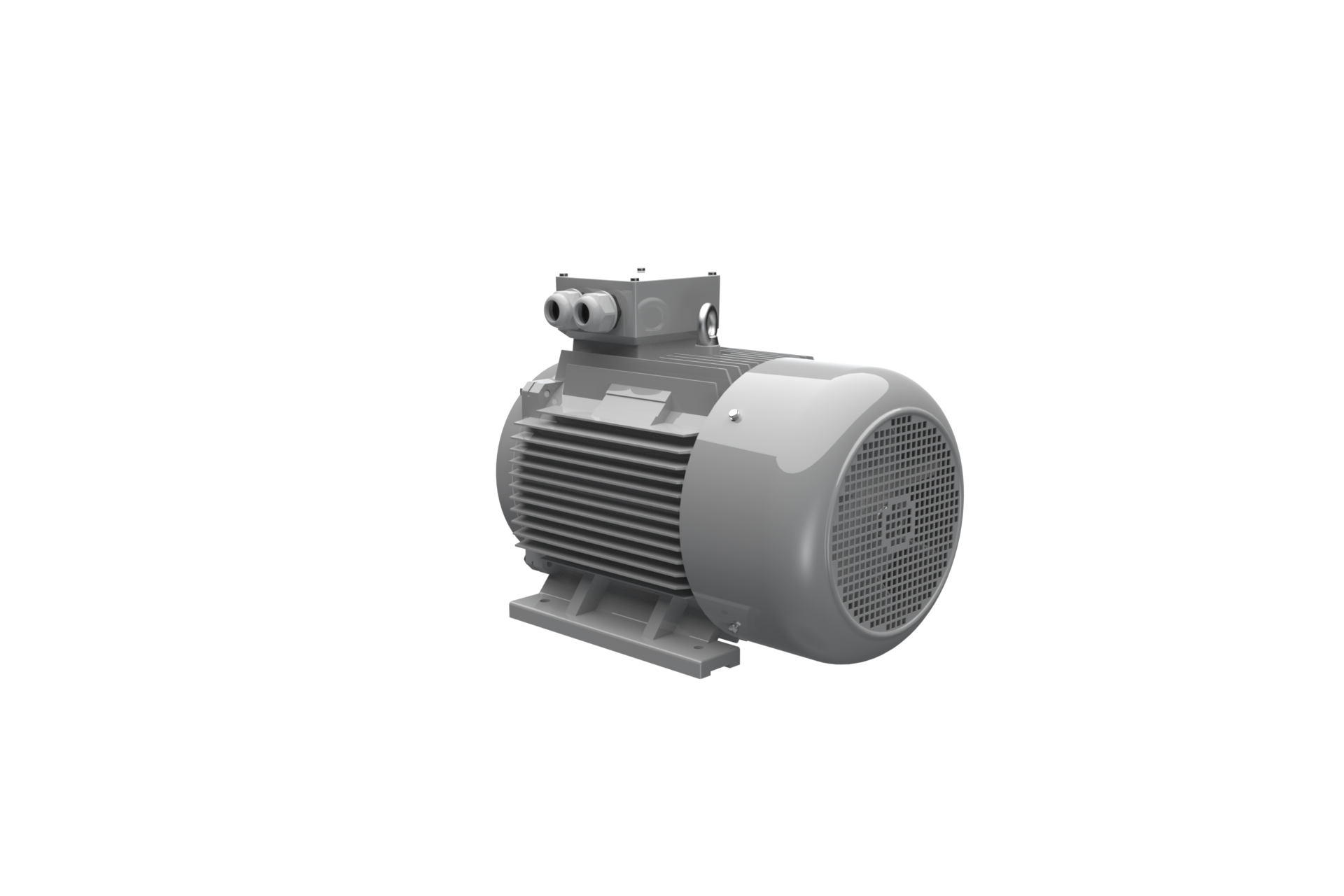

Asynchronous-Motor MS ACM 160 L 2/4
Product number: ACMAAM0D241601J00000
Motor type Multi speed quad.
Speed OP1 2930/1440
Mounting B3
Frame size 160
Power OP1 16,5/3,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2930/1440
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise
General data
- Balancing:Half key
- Color:RAL7030
- Direction of rotation:left or right
- Frame size:160
- Housing type:A
- Insulation class utilization:B
- Material of housing:Aluminium
- Motor type:Multi speed quad.
- Mounting:B3
Electrical data
- Frequency OP1:50
- Pole:2/4
- Power OP1:16,5/3,8
- Voltage OP1:380-420 V
Mechanical data
- Speed OP1:2930/1440
- Speed OP2:3516/1728
Data sheets & 3D Models
Technical Documents
