Pole-changing motors
2,5/0,65 kW PTC 150°C
Asynchronous-Motor MS ACM 100 LA 2/4 ACMAAM0B241001J00000
Mounting B3
Frame size 100
Power OP1 (kW) 2,5/0,65
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2840/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2,5/0,65 kW PTC 150°C
Asynchronous-Motor MS ACM 100 LA 2/4 ACMAAM0B241002J00000
Mounting B5
Frame size 100
Power OP1 (kW) 2,5/0,65
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2840/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2,2/0,7 kW 2xPTC 150°C
Asynchronous-Motor MS ACM 100 LA 4/6 ACMAAM0B461001J00000
Mounting B3
Frame size 100
Power OP1 (kW) 2,2/0,7
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1420/910
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
2,0/0,55 kW PTC 150°C
Asynchronous-Motor MS ACM 100 LA 4/8 ACMAAM0B481001J00000
Mounting B3
Frame size 100
Power OP1 (kW) 2,0/0,55
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1443/690
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
3,1/0,8 kW PTC 150°C
Asynchronous-Motor MS ACM 100 LB 2/4 ACMAAM0D241001J00000
Mounting B3
Frame size 100
Power OP1 (kW) 3,1/0,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2880/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
3,1/2,6 kW
Asynchronous-Motor MS ACM 100 LB 2/4 ACMAAM0E241003J00000
Mounting B14a
Frame size 100
Power OP1 (kW) 3,1/2,6
Voltage OP1 380-420 V
Motor type Multi speed const.
Speed OP1 (1/min) 2835/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
3,1/2,6 kW
Asynchronous-Motor MS ACM 100 LB 2/4 ACMAAM0E241002J00000
Mounting B5
Frame size 100
Power OP1 (kW) 3,1/2,6
Voltage OP1 380-420 V
Motor type Multi speed const.
Speed OP1 (1/min) 2835/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2,5/0,9 kW 2xPTC 150°C
Asynchronous-Motor MS ACM 100 LB 4/6 ACMAAM0D461001J00000
Mounting B3
Frame size 100
Power OP1 (kW) 2,5/0,9
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1420/910
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
2,4/0,65 kW PTC 150°C
Asynchronous-Motor MS ACM 100 LB 4/8 ACMAAM0C481001J00000
Mounting B3
Frame size 100
Power OP1 (kW) 2,4/0,65
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1420/700
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
4,4/1,1 kW PTC 150°C
Asynchronous-Motor MS ACM 112 M 2/4 ACMAAM0B241101J00000
Mounting B3
Frame size 112
Power OP1 (kW) 4,4/1,1
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2890/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
3,2/1,1 kW 2xPTC 150°C
Asynchronous-Motor MS ACM 112 M 4/6 ACMAAM0B461101J00000
Mounting B3
Frame size 112
Power OP1 (kW) 3,2/1,1
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1420/910
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
3,2/0,9 kW PTC 150°C
Asynchronous-Motor MS ACM 112 M 4/8 ACMAAM0B481101J00000
Mounting B3
Frame size 112
Power OP1 (kW) 3,2/0,9
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1420/700
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
8,0/2,0 kW PTC 150°C
Asynchronous-Motor MS ACM 132 M 2/4 ACMAAM0E241301J00000
Mounting B3
Frame size 132
Power OP1 (kW) 8,0/2,0
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2900/1420
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
6,7/2,2 kW 2xPTC 150°C
Asynchronous-Motor MS ACM 132 M 4/6 ACMAAM0D461301J00000
Mounting B3
Frame size 132
Power OP1 (kW) 6,7/2,2
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1440/940
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
6,3/1,5 kW PTC 150°C
Asynchronous-Motor MS ACM 132 M 4/8 ACMAAM0D481301J00000
Mounting B3
Frame size 132
Power OP1 (kW) 6,3/1,5
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1440/700
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
5,9/1,4 kW PTC 150°C
Asynchronous-Motor MS ACM 132 S 2/4 ACMAAM0D241301J00000
Mounting B3
Frame size 132
Power OP1 (kW) 5,9/1,4
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2900/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
4,7/1,5 kW 2xPTC 150°C
Asynchronous-Motor MS ACM 132 S 4/6 ACMAAM0B461301J00000
Mounting B3
Frame size 132
Power OP1 (kW) 4,7/1,5
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1440/940
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
16,5/3,8 kW PTC 150°C

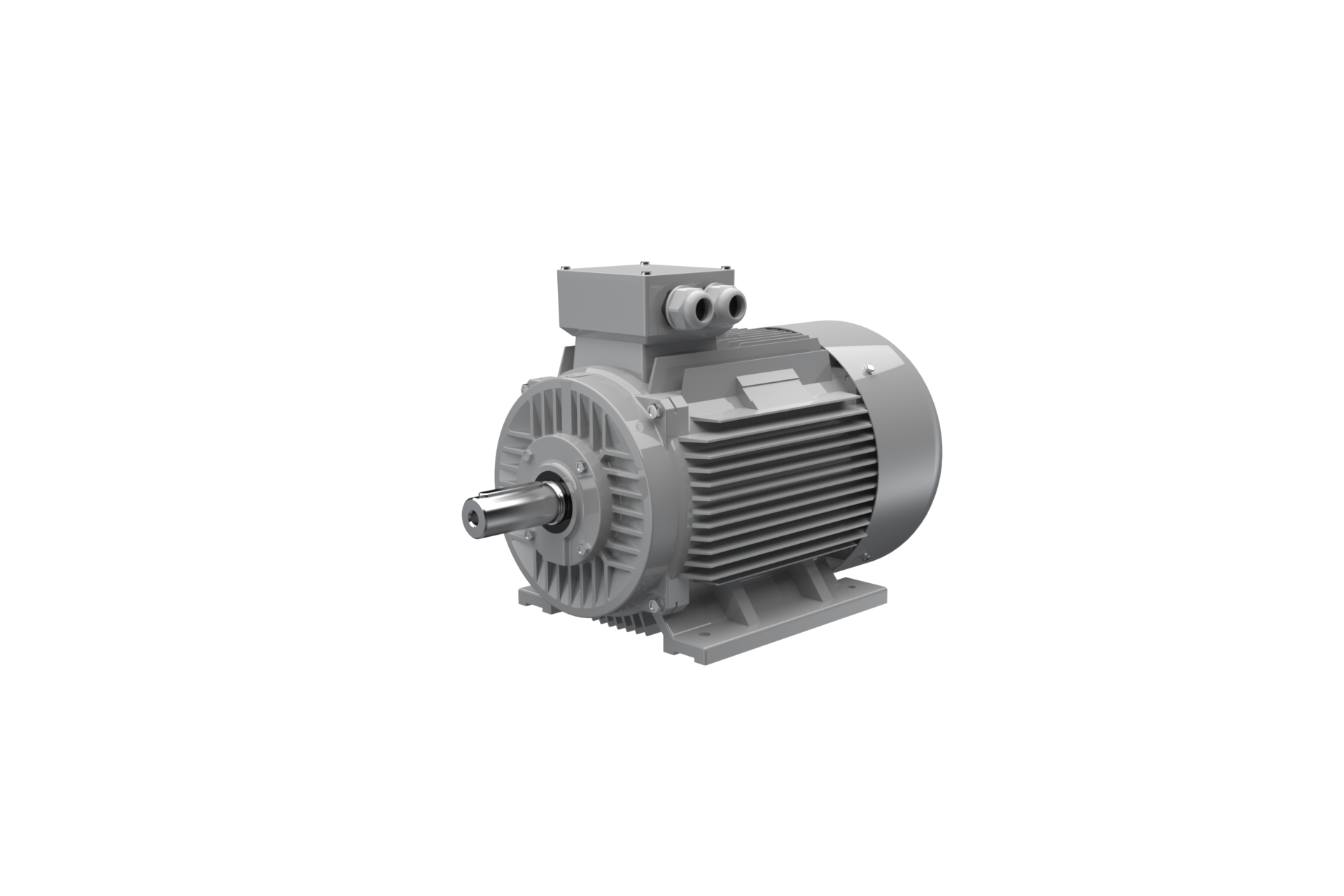

Asynchronous-Motor MS ACM 160 L 2/4 ACMAAM0D241601J00000
Mounting B3
Frame size 160
Power OP1 (kW) 16,5/3,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2930/1440
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
16,5/3,8 kW PTC 150°C
Asynchronous-Motor MS ACM 160 L 2/4 ACMAAM0D241603J00000
Mounting B14a
Frame size 160
Power OP1 (kW) 16,5/3,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2930/1440
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
12,0/4,0 kW 2xPTC 150°C
Asynchronous-Motor MS ACM 160 L 4/6 ACMAAM0D461601J00000
Mounting B3
Frame size 160
Power OP1 (kW) 12,0/4,0
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1460/960
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
12,0/4,0 kW 2xPTC 150°C

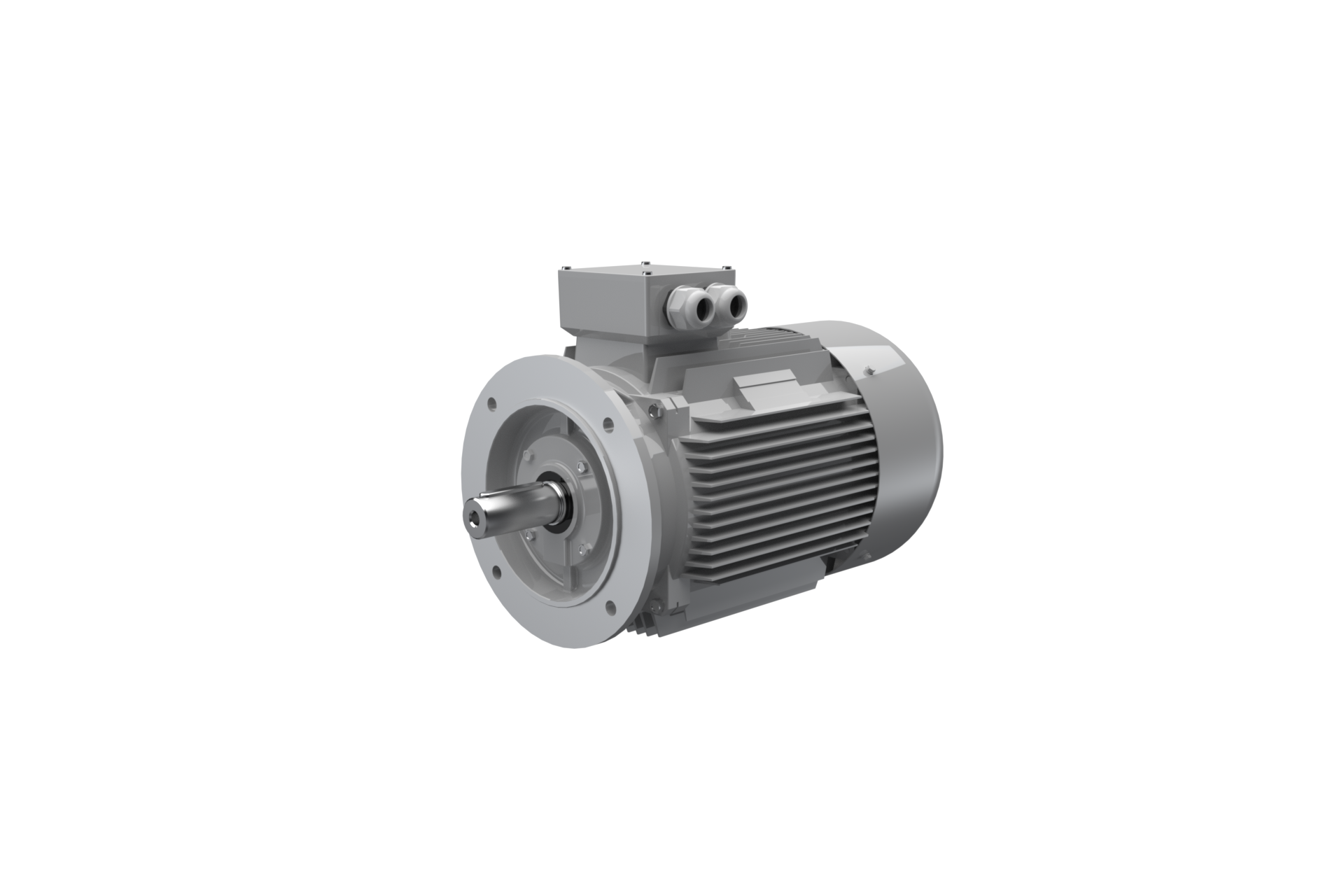

Asynchronous-Motor MS ACM 160 L 4/6 ACMAAM0D461602J00000
Mounting B5
Frame size 160
Power OP1 (kW) 12,0/4,0
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1460/960
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
12,0/2,7 kW PTC 150°C
Asynchronous-Motor MS ACM 160 L 4/8 ACMAAM0D481601J00000
Mounting B3
Frame size 160
Power OP1 (kW) 12,0/2,7
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1460/710
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
12,0/2,7 kW PTC 150°C
Asynchronous-Motor MS ACM 160 L 4/8 ACMAAM0D481602J00000
Mounting B5
Frame size 160
Power OP1 (kW) 12,0/2,7
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1460/710
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
12,5/2,8 kW PTC 150°C
Asynchronous-Motor MS ACM 160 M 2/4 ACMAAM0B241601J00000
Mounting B3
Frame size 160
Power OP1 (kW) 12,5/2,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 2930/1420
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
