12,0/2,7 kW PTC 150°C
12,0/2,7 kW PTC 150°C

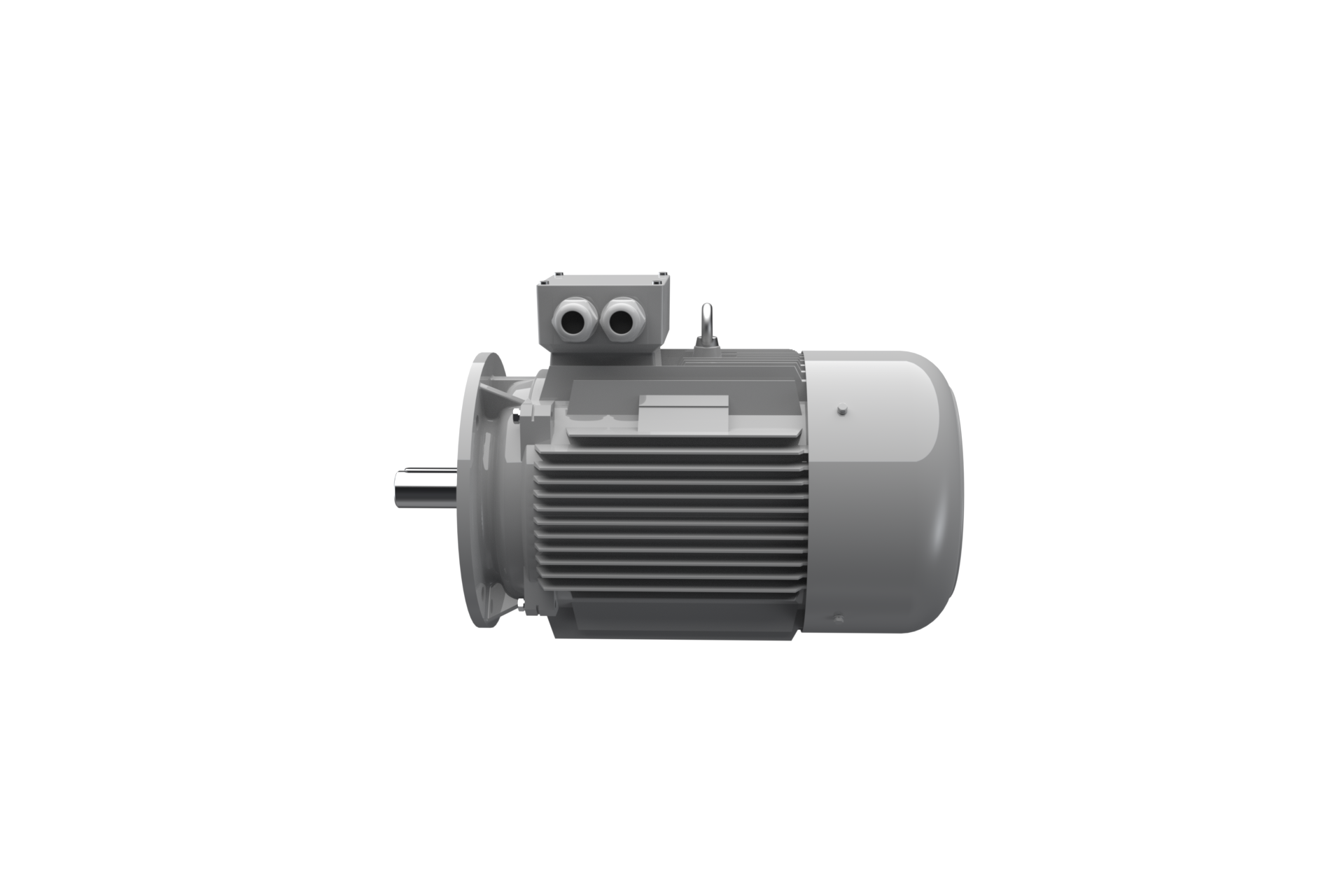

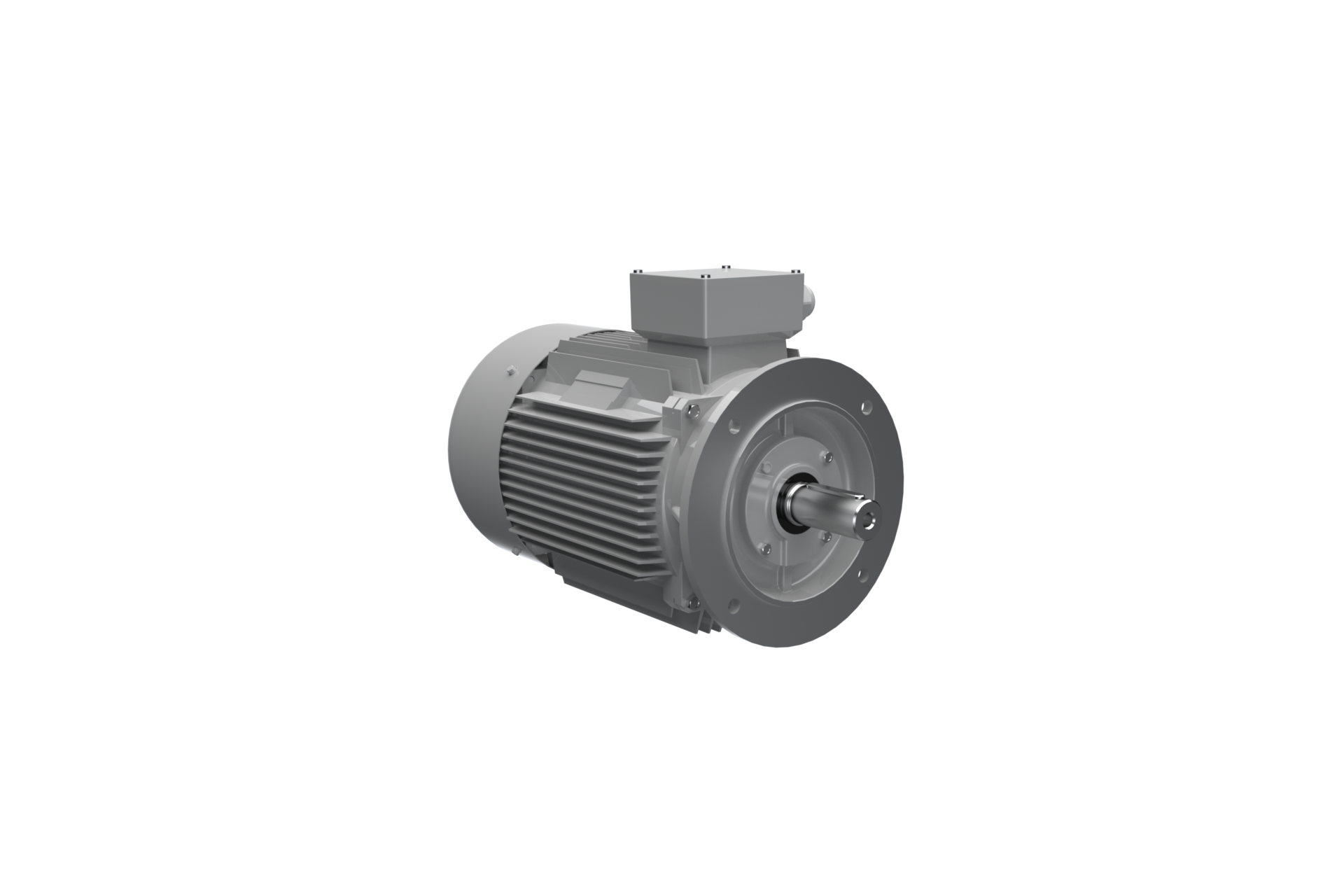

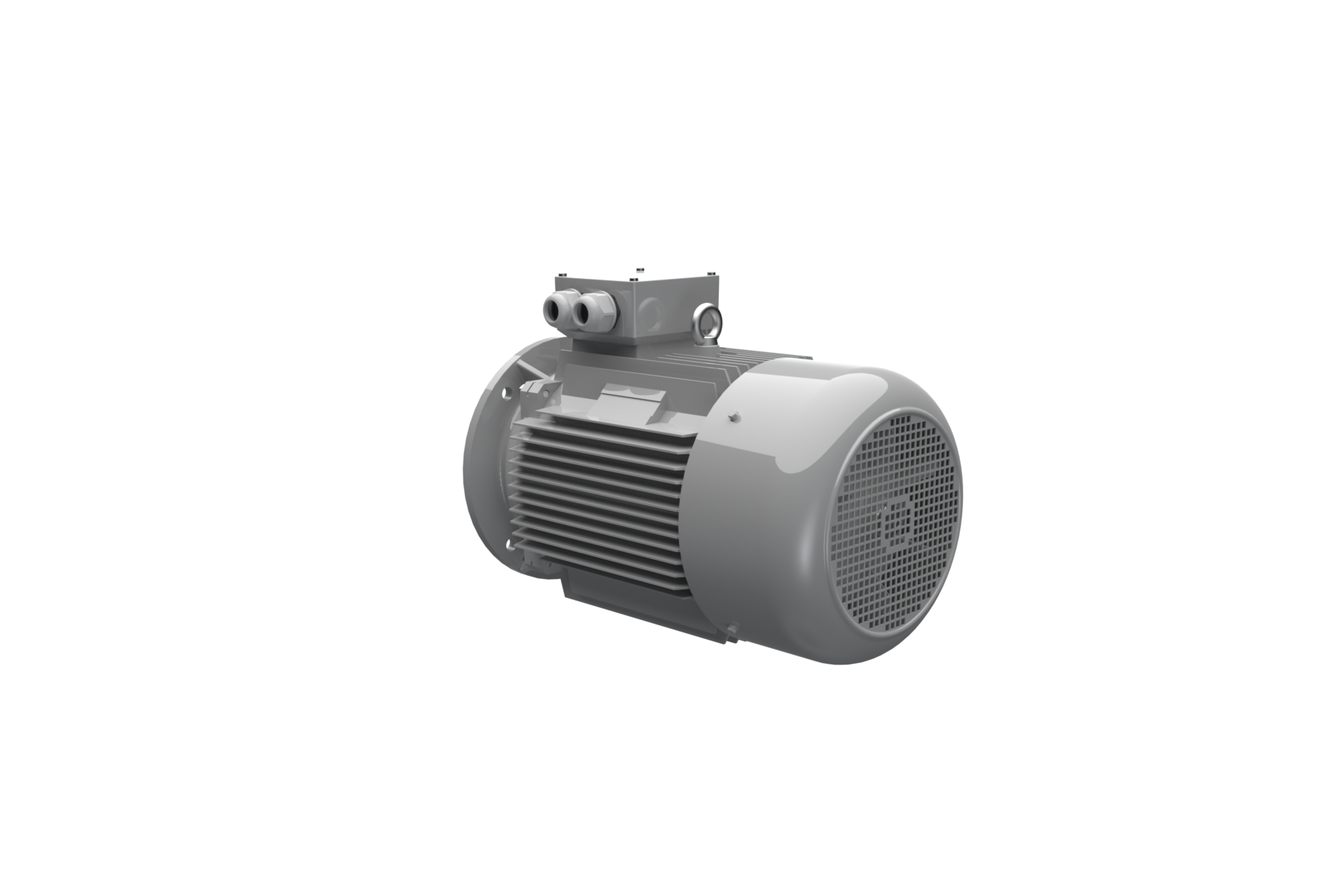

Asynchronous-Motor MS ACM 160 L 4/8
Product number: ACMAAM0D481602J00000
Motor type Multi speed quad.
Speed OP1 (1/min) 1460/710
Mounting B5
Frame size 160
Power OP1 (kW) 12,0/2,7
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 (1/min) 1460/710
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise
General data
- Color:RAL7030
- Direction of rotation:left or right
- Duty type OP1:S1
- Housing type:L
- Insulation class utilization:B
- Motor design:Standard
- Motor type:Multi speed quad.
- Protection class (IP):IP55
- Terminal box orientation:Cable glands to the right
- Technology:AC Asynchronous-Motor
- Frame size:160
- Mounting:B5
- Material of housing:Cast Iron
Electrical data
- Circuit type OP1:YY/Y
- Frequency OP1 (Hz):50
- Pole:4/8
- Power OP1 (kW):12,0/2,7
- Voltage OP1:380-420 V
- Voltage OP2:440-480 V
Mechanical data
- Ambient temperature:-20 up to +40 °C
- Bearing arrangement DE:loose
- Bearing arrangement NDE:fixed
- Bearing drive-end:6309.ZZ.C3
- Bearing non drive-end:6309.ZZ.C3
- Cable glands:1xM40 / 1xM40plug / 1xM20
- Shaft dimension drive-end:42 x 110 mm
- Speed OP1 (1/min):1460/710
- Protective device winding:PTC 150°C
