0,18 kW
0,18 kW

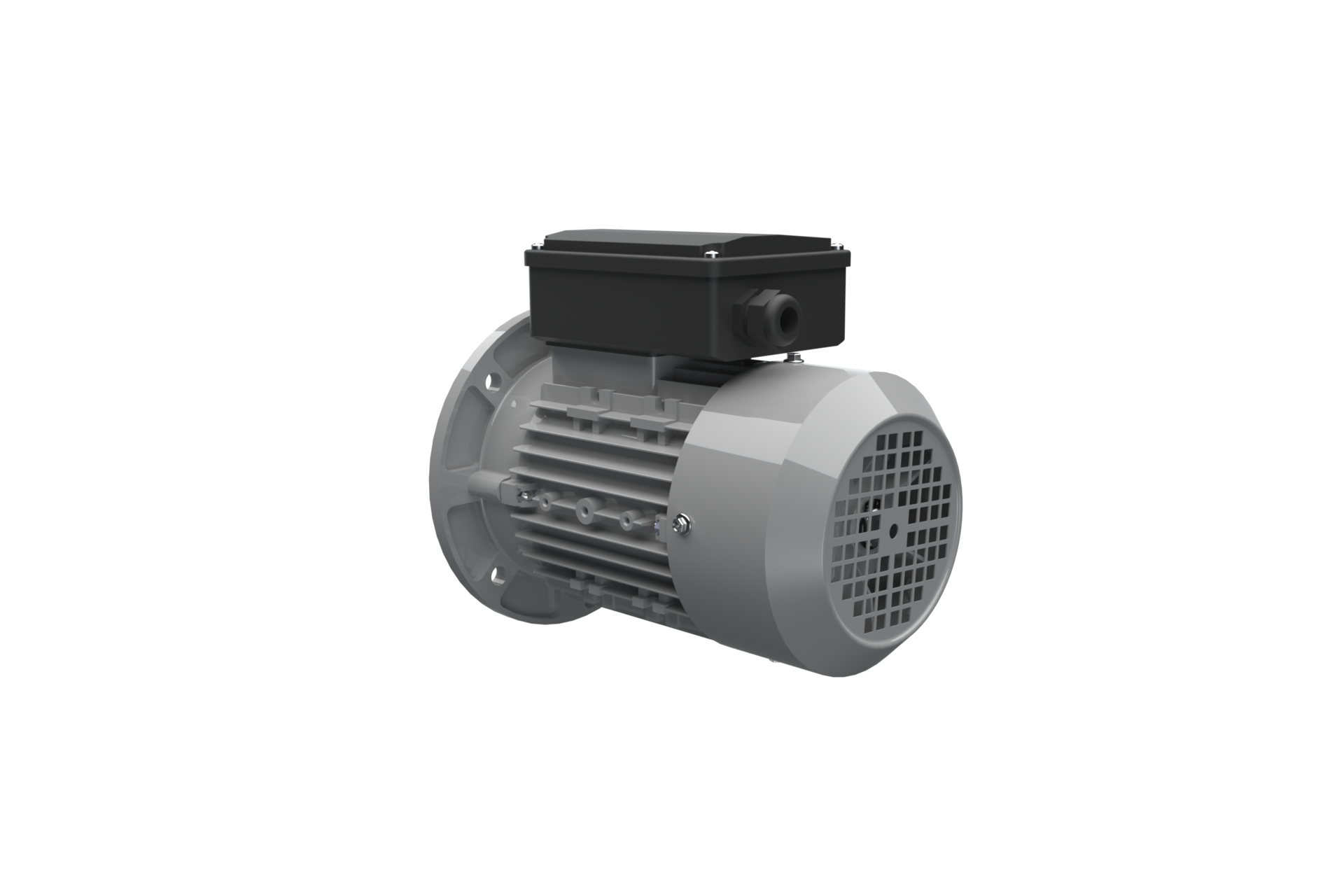

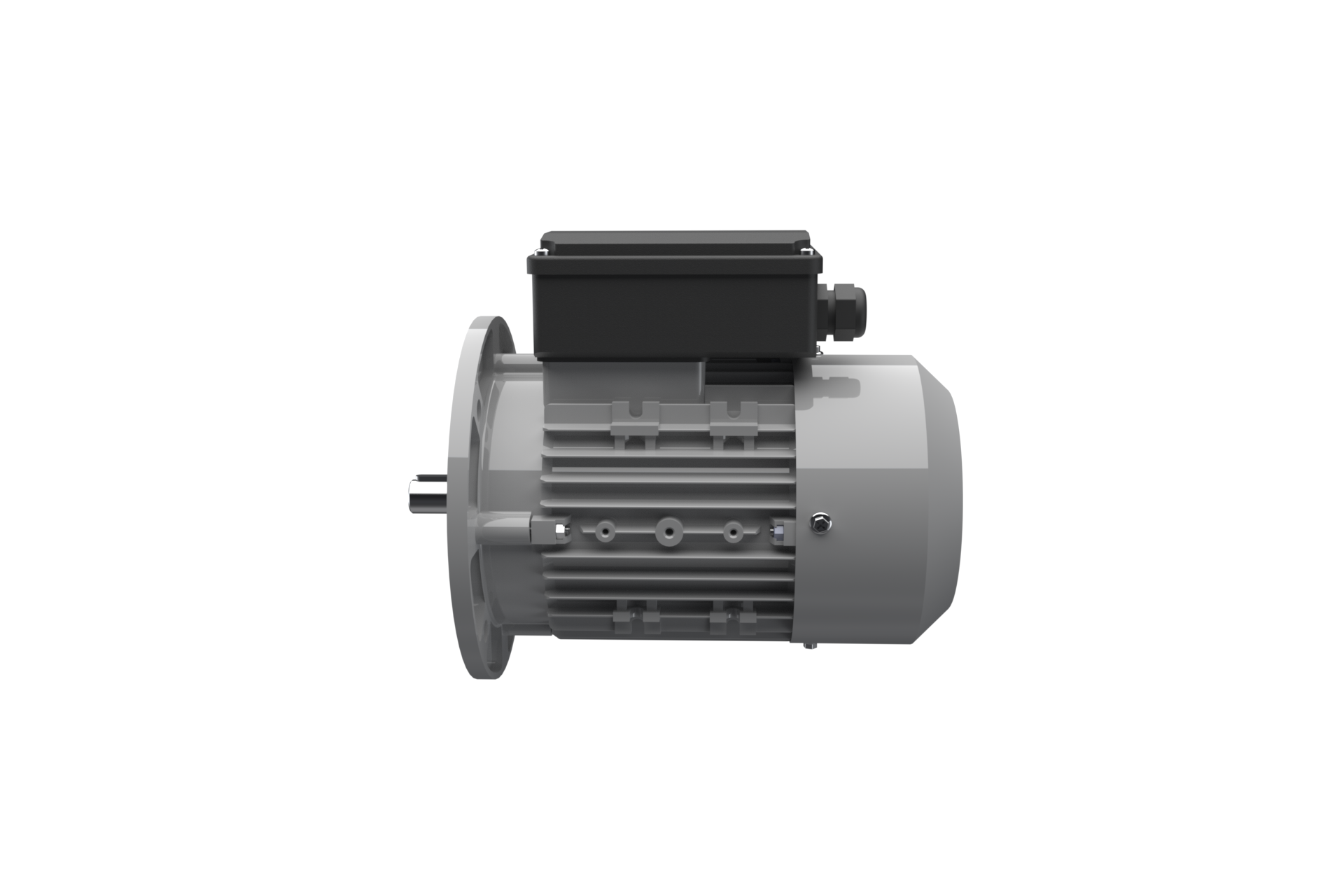

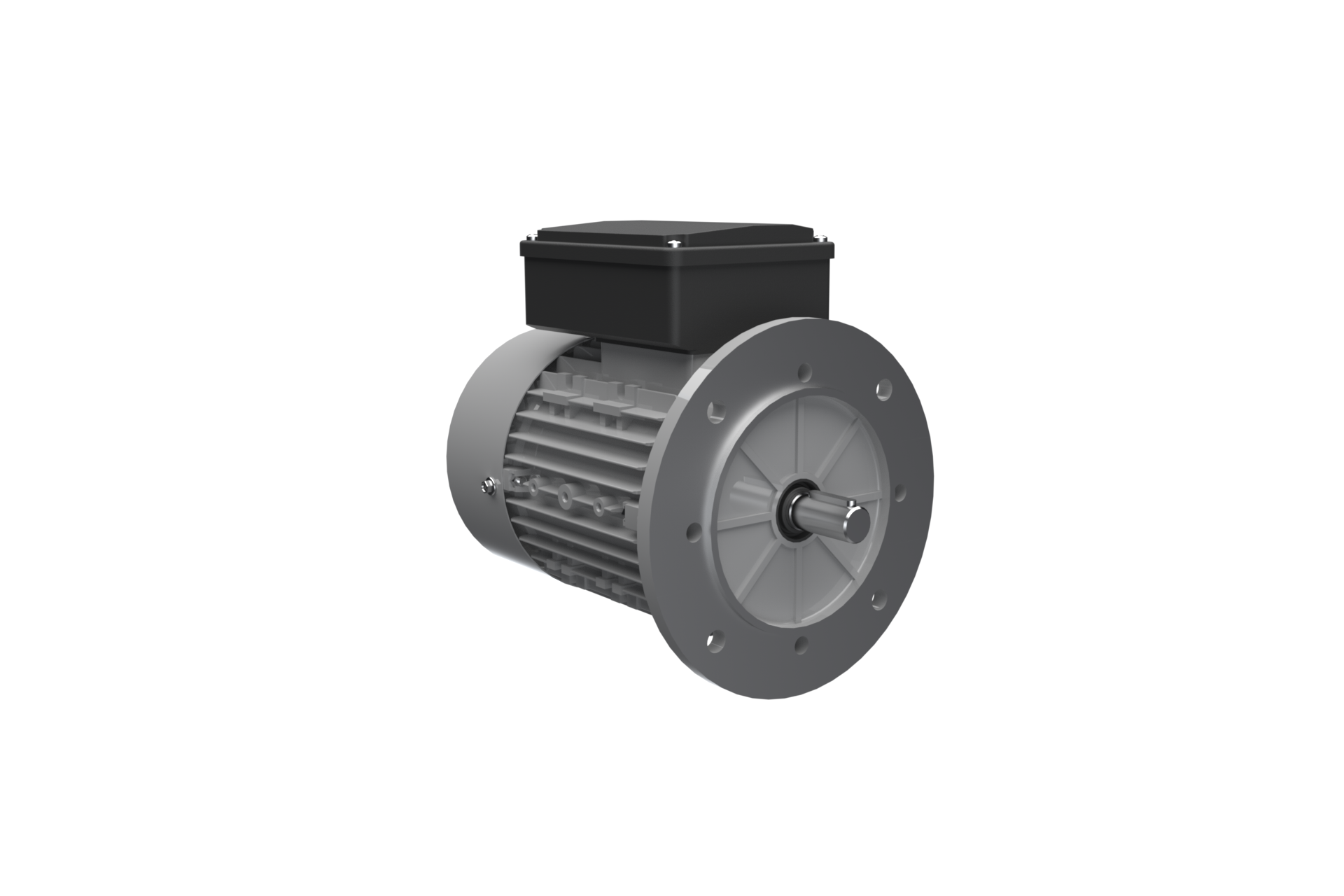

Asynchronous-Motor SP ACM 63 4
Product number: ACMAAB0B040602A00000
Motor type Single Capacitor
Speed OP1 1400
Mounting B5
Frame size 63
Power OP1 0,18
Voltage OP1 230 V
Motor type Single Capacitor
Speed OP1 1400
Insulation class F
Protection class (IP) IP55
Pole 4
Duty type OP1 S1
Fast & competent service
through technically experienced employees
High availability
through 3.5 million engine variants in stock
Top quality
through in-house testing
Individual modifications
through in-house expertise
General data
- Balancing:Half key
- Color:RAL7030
- Direction of rotation:right
- Frame size:63
- Insulation class utilization:B
- Material of housing:Aluminium
- Motor type:Single Capacitor
- Mounting:B5
Electrical data
- Frequency OP1:50
- Pole:4
- Power OP1:0,18
- Starting current factor OP1:3,1
- Starting torque factor OP1:0,4
- Voltage OP1:230 V
Mechanical data
- Speed OP1:1400
- Torque OP1:1,23
Data sheets & 3D Models
Technical Documents
