Polumschatlbare Motoren
2,5/0,65 kW PTC 150°C
Asynchronous-Motor MS ACM 100 LA 2/4
Mounting B3
Frame size 100
Power OP1 2,5/0,65
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2840/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2,5/0,65 kW PTC 150°C
Asynchronous-Motor MS ACM 100 LA 2/4
Mounting B5
Frame size 100
Power OP1 2,5/0,65
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2840/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2,2/0,7 kW 2xPTC 150°C
Asynchronous-Motor MS ACM 100 LA 4/6
Mounting B3
Frame size 100
Power OP1 2,2/0,7
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1420/910
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
PTC 150°C 2,0/0,55 kW
Asynchronous-Motor MS ACM 100 LA 4/8
Mounting B3
Frame size 100
Power OP1 2,0/0,55
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1443/690
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
PTC 150°C 3,1/0,8 kW
Asynchronous-Motor MS ACM 100 LB 2/4
Mounting B3
Frame size 100
Power OP1 3,1/0,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2880/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
3,1/2,6 kW
Asynchronous-Motor MS ACM 100 LB 2/4
Mounting B14a
Frame size 100
Power OP1 3,1/2,6
Voltage OP1 380-420 V
Motor type Multi speed const.
Speed OP1 2835/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
3,1/2,6 kW
Asynchronous-Motor MS ACM 100 LB 2/4
Mounting B5
Frame size 100
Power OP1 3,1/2,6
Voltage OP1 400 V
Motor type Multi speed const.
Speed OP1 2835/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2xPTC 150°C 2,5/0,9 kW
Asynchronous-Motor MS ACM 100 LB 4/6
Mounting B3
Frame size 100
Power OP1 2,5/0,9
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1420/910
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
PTC 150°C 2,4/0,65 kW
Asynchronous-Motor MS ACM 100 LB 4/8
Mounting B3
Frame size 100
Power OP1 2,4/0,65
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1420/700
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
PTC 150°C 4,4/1,1 kW
Asynchronous-Motor MS ACM 112 M 2/4
Mounting B3
Frame size 112
Power OP1 4,4/1,1
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2890/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2xPTC 150°C 3,2/1,1 kW
Asynchronous-Motor MS ACM 112 M 4/6
Mounting B3
Frame size 112
Power OP1 3,2/1,1
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1420/910
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
PTC 150°C 3,2/0,9 kW
Asynchronous-Motor MS ACM 112 M 4/8
Mounting B3
Frame size 112
Power OP1 3,2/0,9
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1420/700
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
PTC 150°C 8,0/2,0 kW
Asynchronous-Motor MS ACM 132 M 2/4
Mounting B3
Frame size 132
Power OP1 8,0/2,0
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2900/1420
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2xPTC 150°C 6,7/2,2 kW
Asynchronous-Motor MS ACM 132 M 4/6
Mounting B3
Frame size 132
Power OP1 6,7/2,2
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1440/940
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
PTC 150°C 6,3/1,5 kW
Asynchronous-Motor MS ACM 132 M 4/8
Mounting B3
Frame size 132
Power OP1 6,3/1,5
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1440/700
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
PTC 150°C 5,9/1,4 kW
Asynchronous-Motor MS ACM 132 S 2/4
Mounting B3
Frame size 132
Power OP1 5,9/1,4
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2900/1400
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2xPTC 150°C 4,7/1,5 kW
Asynchronous-Motor MS ACM 132 S 4/6
Mounting B3
Frame size 132
Power OP1 4,7/1,5
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1440/940
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1

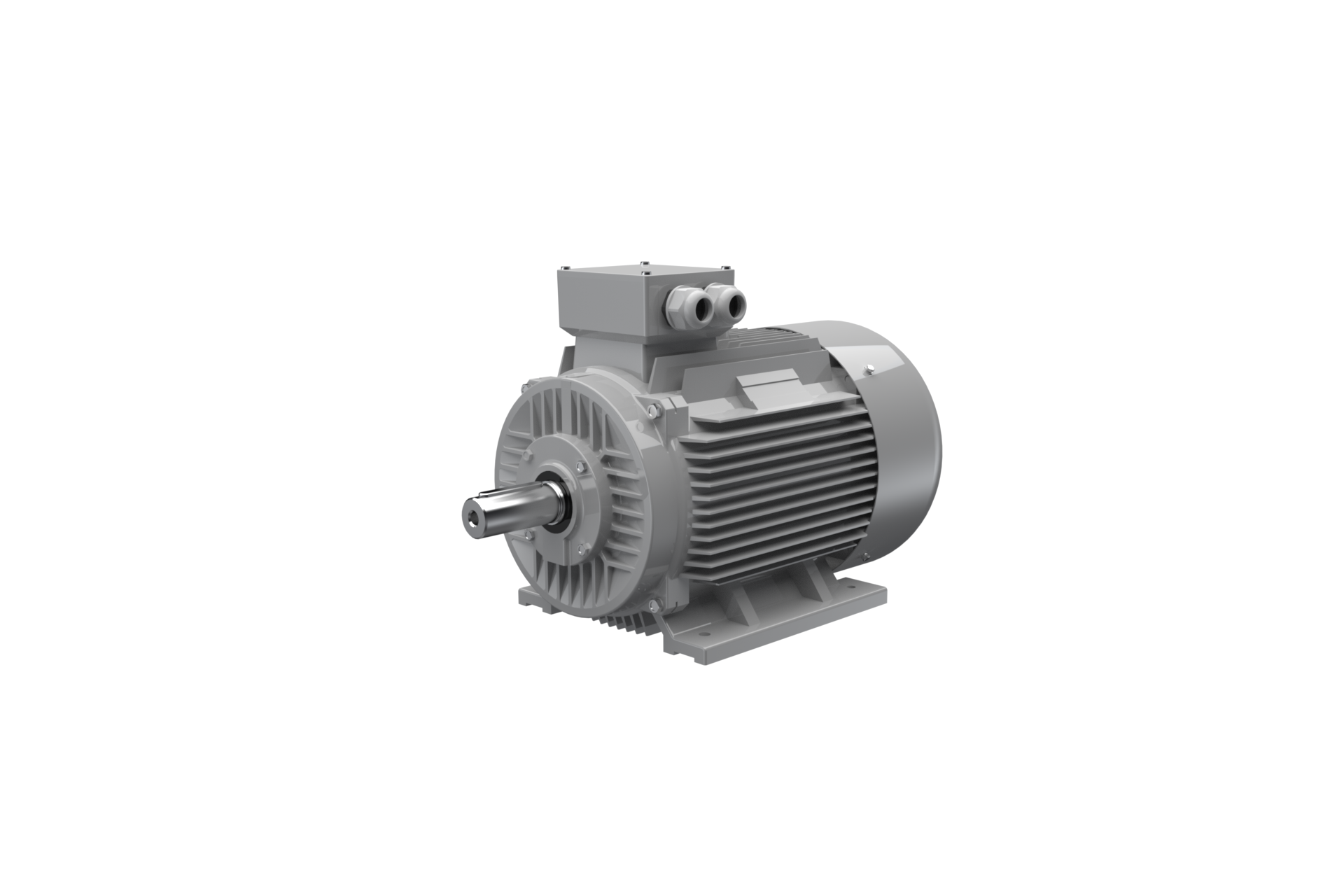

PTC 150°C 16,5/3,8 kW
Asynchronous-Motor MS ACM 160 L 2/4
Mounting B3
Frame size 160
Power OP1 16,5/3,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2930/1440
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
PTC 150°C 16,5/3,8 kW
Asynchronous-Motor MS ACM 160 L 2/4
Mounting B14a
Frame size 160
Power OP1 16,5/3,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2930/1440
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
2xPTC 150°C 12,0/4,0 kW
Asynchronous-Motor MS ACM 160 L 4/6
Mounting B3
Frame size 160
Power OP1 12,0/4,0
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1460/960
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1

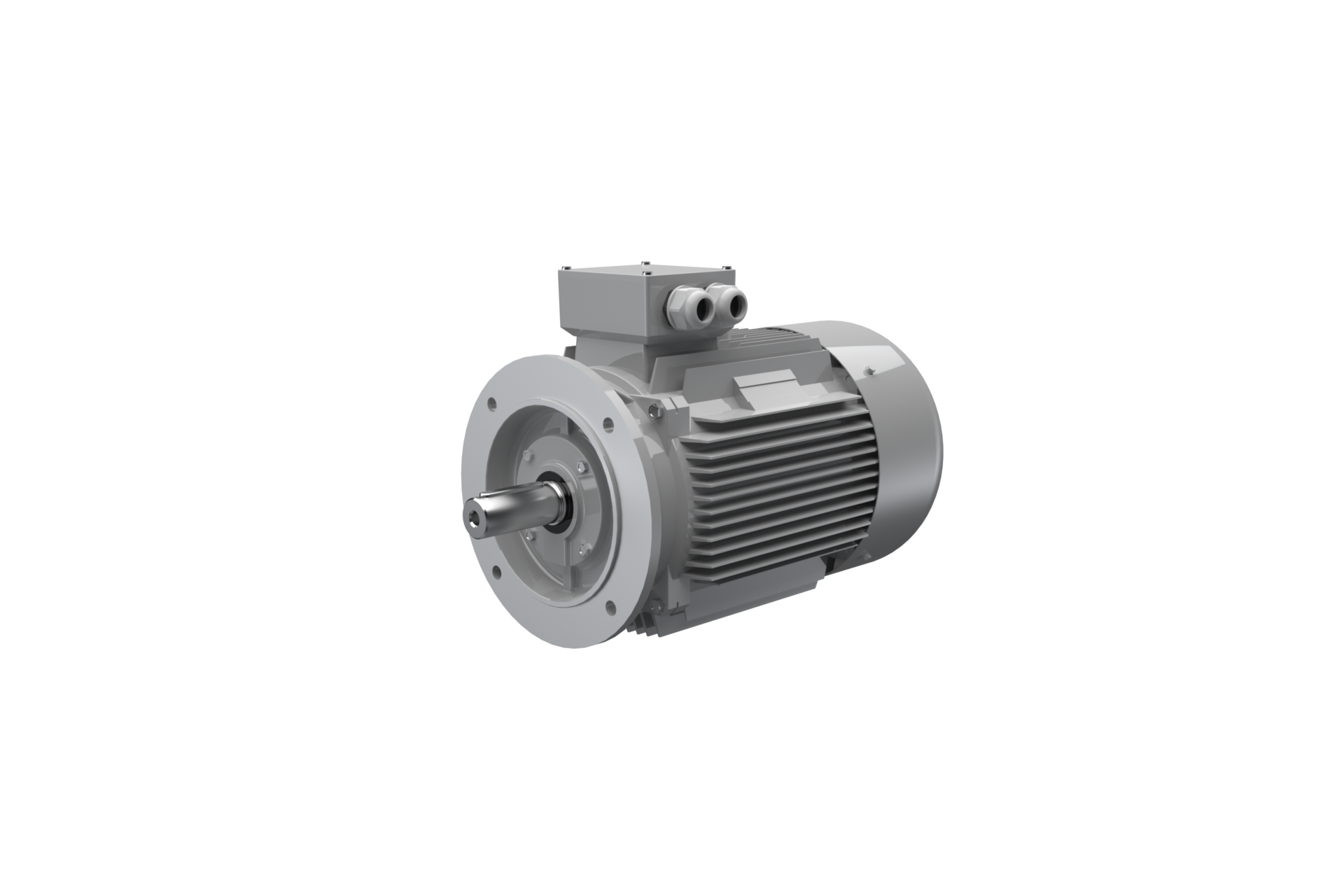

2xPTC 150°C 12,0/4,0 kW
Asynchronous-Motor MS ACM 160 L 4/6
Mounting B5
Frame size 160
Power OP1 12,0/4,0
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1460/960
Insulation class F
Protection class (IP) IP55
Pole 4/6
Duty type OP1 S1
PTC 150°C 12,0/2,7 kW
Asynchronous-Motor MS ACM 160 L 4/8
Mounting B3
Frame size 160
Power OP1 12,0/2,7
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1460/710
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
PTC 150°C 12,0/2,7 kW
Asynchronous-Motor MS ACM 160 L 4/8
Mounting B5
Frame size 160
Power OP1 12,0/2,7
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 1460/710
Insulation class F
Protection class (IP) IP55
Pole 4/8
Duty type OP1 S1
PTC 150°C 12,5/2,8 kW
Asynchronous-Motor MS ACM 160 M 2/4
Mounting B3
Frame size 160
Power OP1 12,5/2,8
Voltage OP1 380-420 V
Motor type Multi speed quad.
Speed OP1 2930/1420
Insulation class F
Protection class (IP) IP55
Pole 2/4
Duty type OP1 S1
